Achieve Seamless Lighting with Our 90° Corner Connector Kit

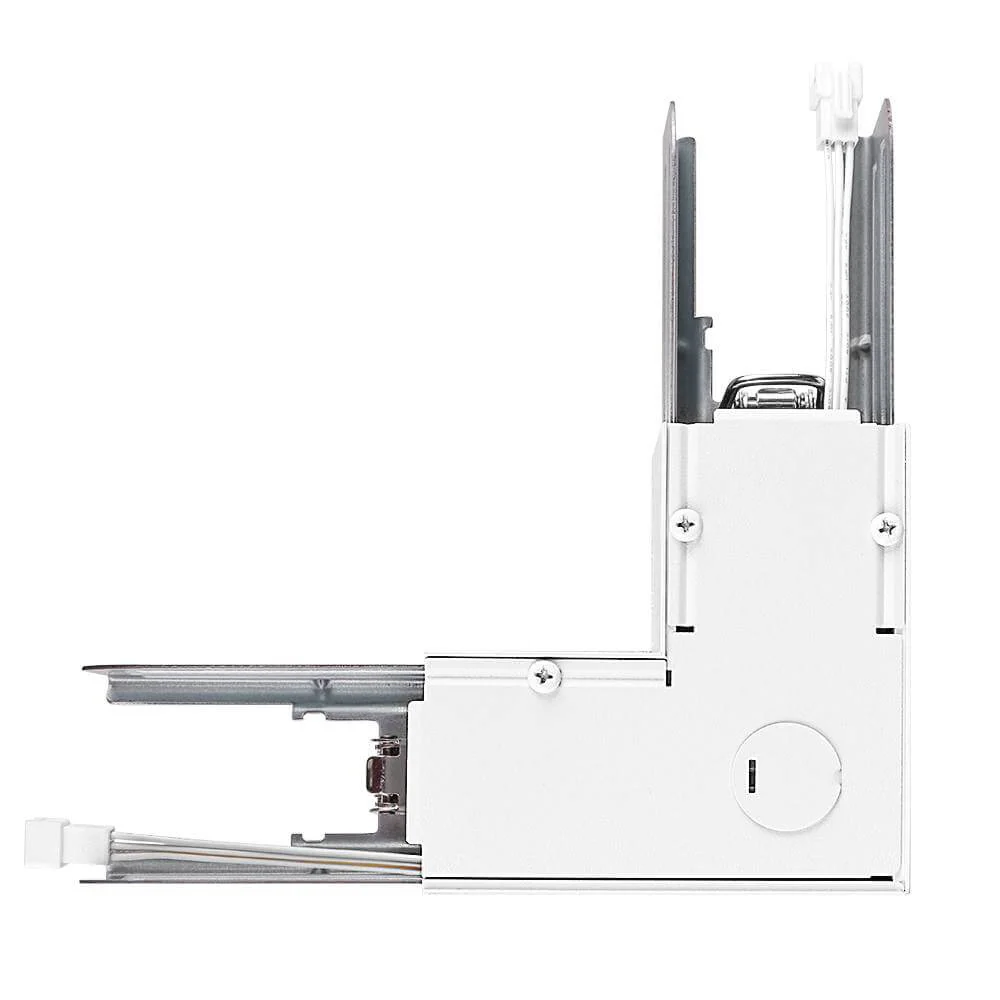

Strip Light L-Shape Splice Kit – 90° Corner Connector for LED Architectural Strip Lights, Black/White Finish

Features:

90° L-Shape Splicing: Purpose-built connector kit that joins two LED architectural strip light fixtures at a 90° angle, enabling continuous corner-to-corner illumination for perimeter and cove lighting layouts

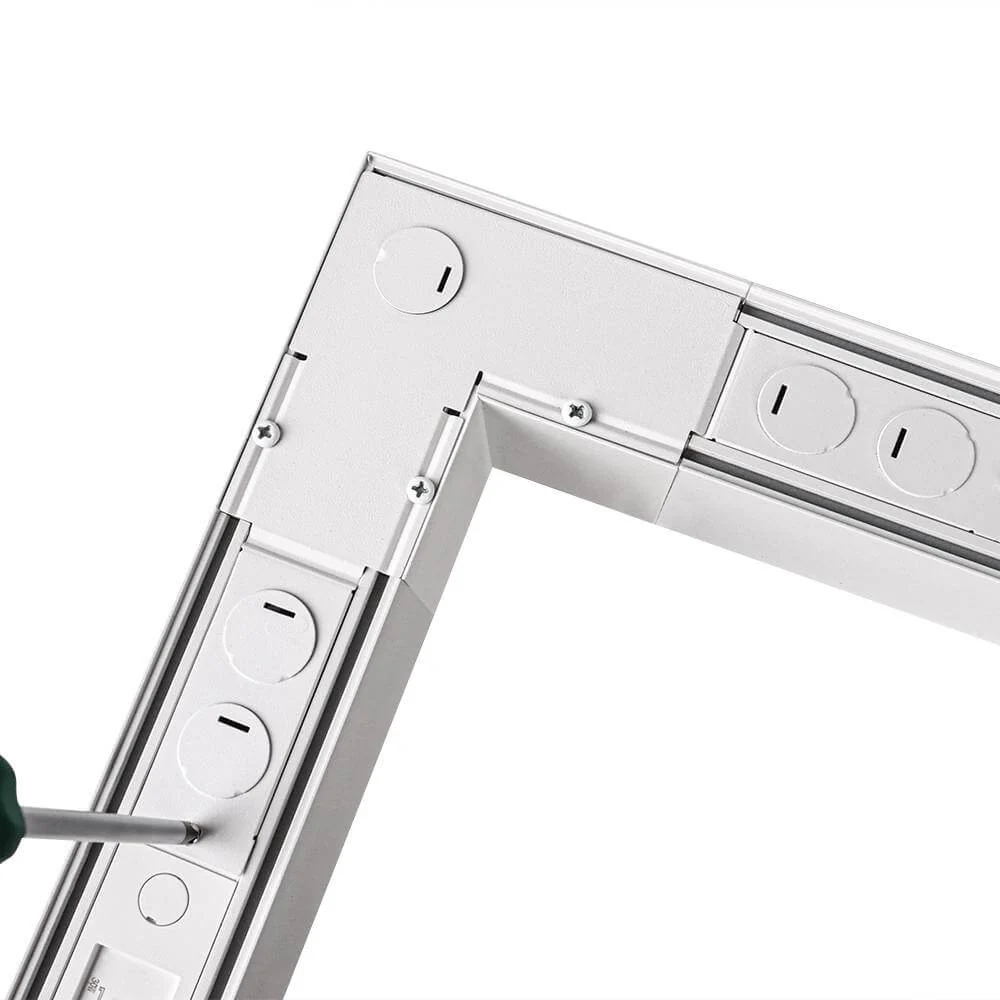

Secure Lock Buckle Assembly: Utilizes splice plates, locating pieces, and lock buckles on both sides of the L-shape connector to firmly join fixtures, ensuring a stable, gap-free mechanical connection
Simplified Electrical Connection: Designed with color-matched quick connecting terminals (orange for dimming, yellow for power, white for connecting) that allow fast, foolproof electrical splicing between the two spliced fixtures
Defined Splice Limits for Safe Loading: Maximum splice quantities are engineered by fixture size, wattage, and voltage (e.g., 2ft/25W allows up to 40pcs at 120V, 4ft/50W allows up to 20pcs at 277V) to ensure the spliced run stays within safe electrical and structural limits
Flexible Power Configuration: Supports standard wiring (AC-Live, Ground, Neutral) as well as wiring with emergency battery backup, making it suitable for both everyday and life-safety lighting circuits
Finish Options: Available in black and white finishes, allowing the splice kit and connector housing to blend seamlessly with the strip fixture and surrounding ceiling or architectural finish

Download Specification Sheet Here

Product Type	L-Shape Splice Kit	Fixture Type	LED Strip Light Corner Connector
Splice Angle	90°	Splice Method	Splice Plate + Lock Buckle
Suggested Hole Distance	2ft: 13.8″–17.7″ / 4ft: 31.5″–39.4″	Max Splice Qty (2ft/25W)	40pcs @120V / 16pcs @277V
Max Splice Qty (4ft/50W)	8pcs @120V / 20pcs @277V	Wiring	Live, Ground, Neutral
Optional Wiring	Emergency Battery Backup (Driver L, Emergency Battery)	Dimming	Orange Terminal (Dimming Wires)
Power Connection	Yellow Terminal (Power Wires)	Color Options	Black, White

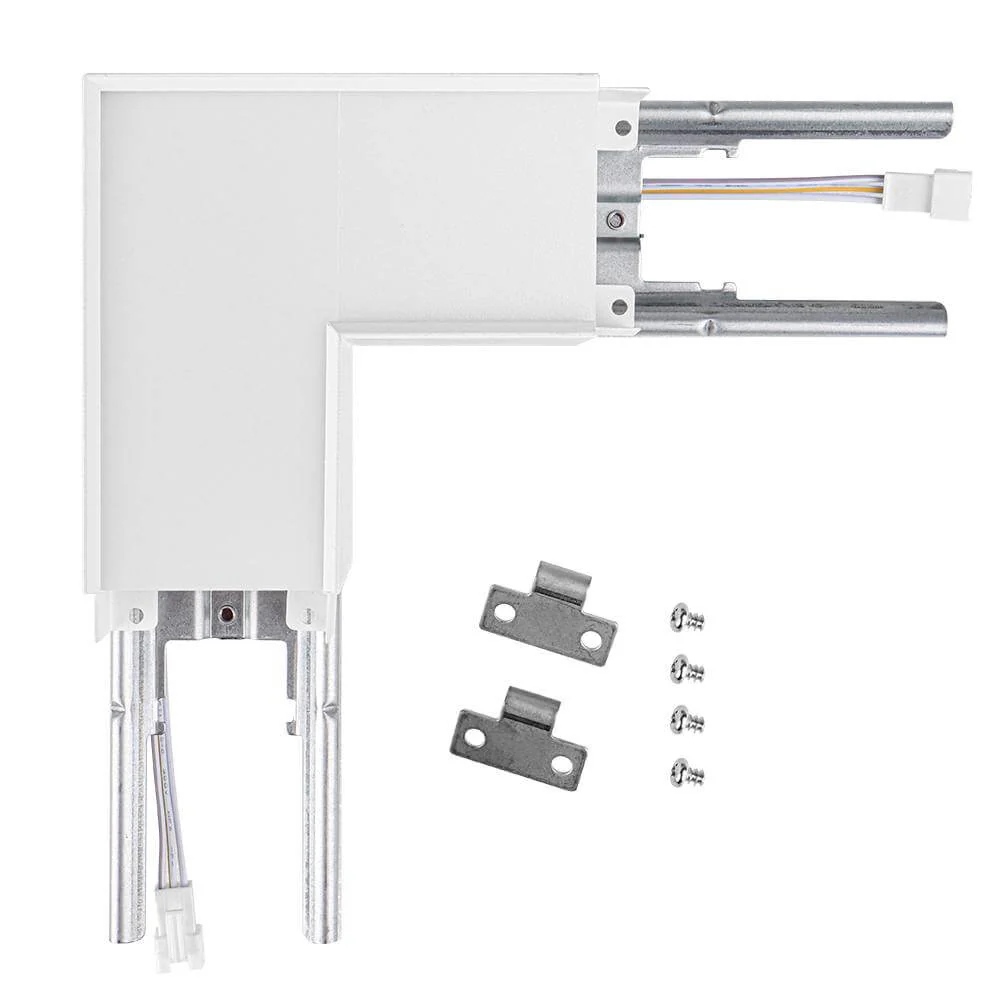

Included Hardware	L-Shape Connector, Splice Plate, Screws	Installation	Ceiling/Surface Splice Mounting
Application Area	Commercial & Architectural Interiors	Use Case	Continuous Perimeter/Corner Runs

SPECIFICATION SHEET

PHOTOMETRIC SHEET

Wattage

Lumens

50,000

Hours Life

CCT

Color Temperature guide

2700k - 5000k Kelvins

Supper Tech LED CCT (Correlated Color Temperature) represents lighting appearance in spaces.
The warmer colour is beneficial for the residential spaces. And The cooler color is ideal for workspaces for a more focused environment.

True colors lighting

Color Rendering Index

Super Tech LED Offers a high CRI (90+)source to measure the ability to reproduce the natural color of light more vibrantly, and realistically as compared to lower CRI, which enhances environment visibility.

Full Range Dimming

0-10 Dimmable

Super Tech LED makes it easier to adjust the lighting intensity and brightness. Dimming up and down changes the visual appearance to your preference.

Touch of modernity

Sleek Modern Design

Super Tech LED light enhanced lighting effects that illuminate and touches modernity as well as having an elegant round design with plastic hours that is long-lasting.
