Transform Your Space with I-Shape Splice Kits for LED Lights

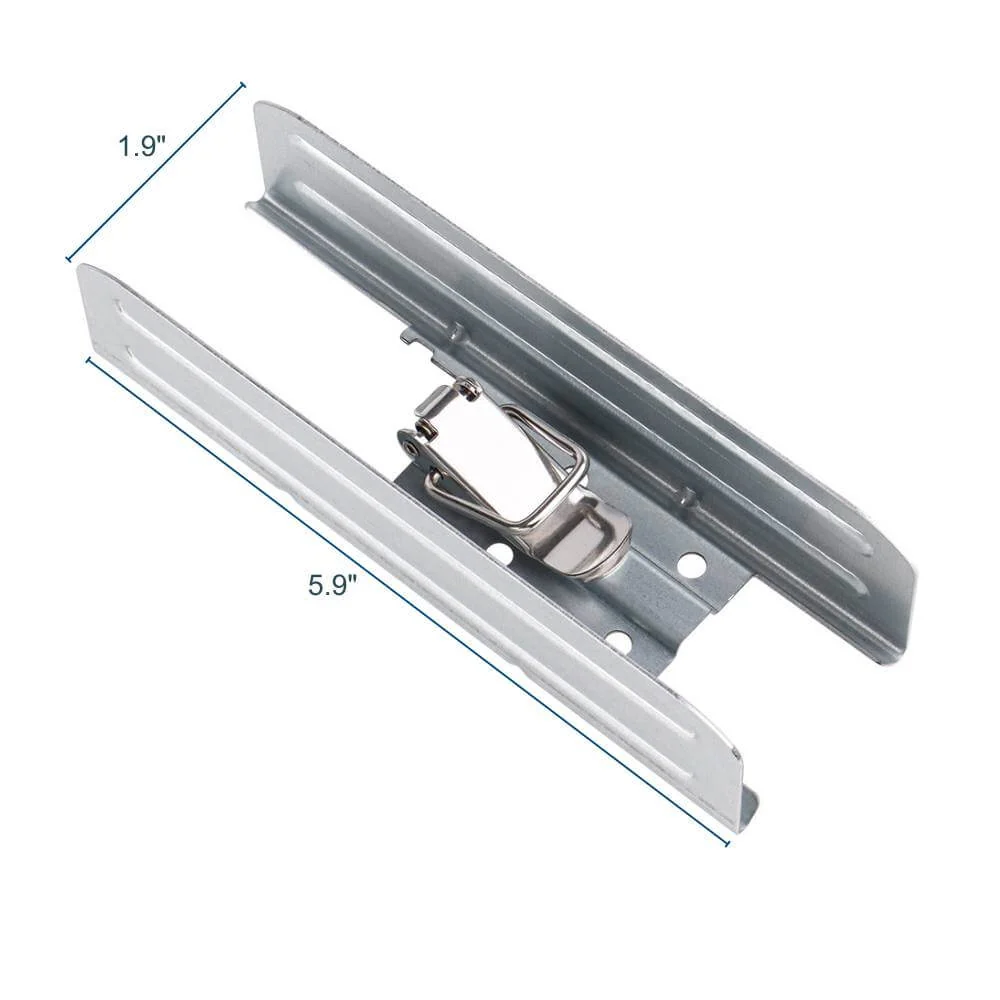

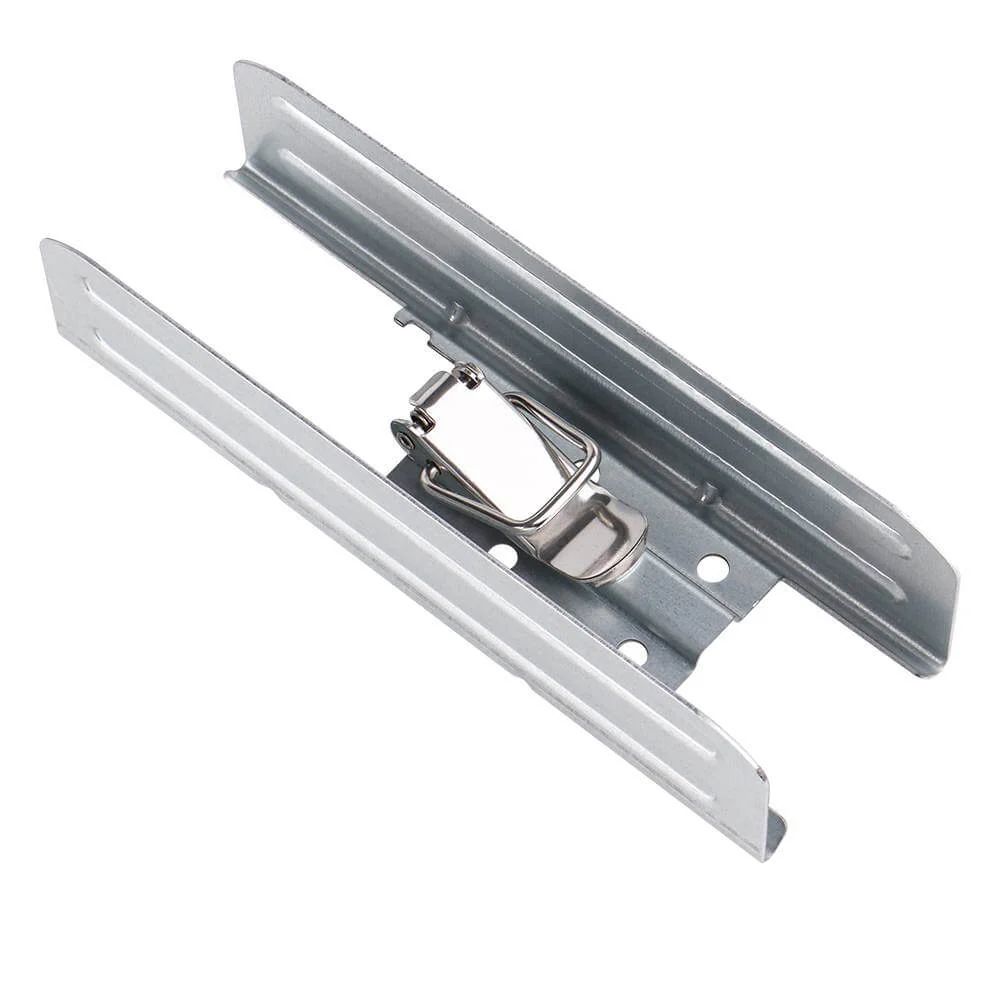

Strip Light I-Shape Splice Kit – In-Line Connector for LED Architectural Strip Lights

Features:

Continuous In-Line Splicing: Purpose-built connector kit that joins two LED architectural strip light fixtures end-to-end in a straight line, creating a seamless continuous run of illumination for long corridors, coves, and linear layouts
Dual Splice Plate Assembly: Uses splice plate A on one fixture and an I-shape connector on the other, secured to the locating pieces with screws, plus two splice plate B pieces installed beneath the lenses for added structural reinforcement at the joint
Secure Lock Buckle Connection: Fixtures are joined and secured with a lock buckle system, ensuring a tight, gap-free mechanical connection between spliced sections
Simplified Electrical Connection: Designed with color-matched quick connecting terminals (orange for dimming, yellow for power, white for connecting) that allow fast, foolproof electrical splicing between the two spliced fixtures
Defined Splice Limits for Safe Loading: Maximum splice quantities are engineered by fixture size, wattage, and voltage (e.g., 2ft/25W allows up to 40pcs at 120V, 4ft/50W allows up to 20pcs at 277V) to ensure the spliced run stays within safe electrical and structural limits
Flexible Power Configuration: Supports standard wiring (AC-Live, Ground, Neutral) as well as wiring with emergency battery backup, making it suitable for both everyday and life-safety lighting circuits

Download Specification Sheet Here

Product Type	I-Shape Splice Kit	Fixture Type	LED Strip Light In-Line Connector
Splice Configuration	Straight Line (In-Line)	Splice Method	Splice Plate A/B + I-Shape Connector + Lock Buckle
Max Splice Qty (2ft/25W)	40pcs @120V / 16pcs @277V	Max Splice Qty (4ft/50W)	8pcs @120V / 20pcs @277V
Wiring	Live, Ground, Neutral	Optional Wiring	Emergency Battery Backup (Driver L, Emergency Battery)
Dimming	Orange Terminal (Dimming Wires)	Power Connection	Yellow Terminal (Power Wires)
Included Hardware	I-Shape Connector, Splice Plate A, Splice Plate B, Screws	Installation	Ceiling/Suspension Splice Mounting
Application Area	Commercial & Architectural Interiors	Use Case	Continuous Straight-Run Lighting

SPECIFICATION SHEET

PHOTOMETRIC SHEET

Wattage

Lumens

50,000

Hours Life

CCT

Color Temperature guide

2700k - 5000k Kelvins

Supper Tech LED CCT (Correlated Color Temperature) represents lighting appearance in spaces.
The warmer colour is beneficial for the residential spaces. And The cooler color is ideal for workspaces for a more focused environment.

True colors lighting

Color Rendering Index

Super Tech LED Offers a high CRI (90+)source to measure the ability to reproduce the natural color of light more vibrantly, and realistically as compared to lower CRI, which enhances environment visibility.

Full Range Dimming

0-10 Dimmable

Super Tech LED makes it easier to adjust the lighting intensity and brightness. Dimming up and down changes the visual appearance to your preference.

Touch of modernity

Sleek Modern Design

Super Tech LED light enhanced lighting effects that illuminate and touches modernity as well as having an elegant round design with plastic hours that is long-lasting.
