Transform Your Space with Advanced LED Control

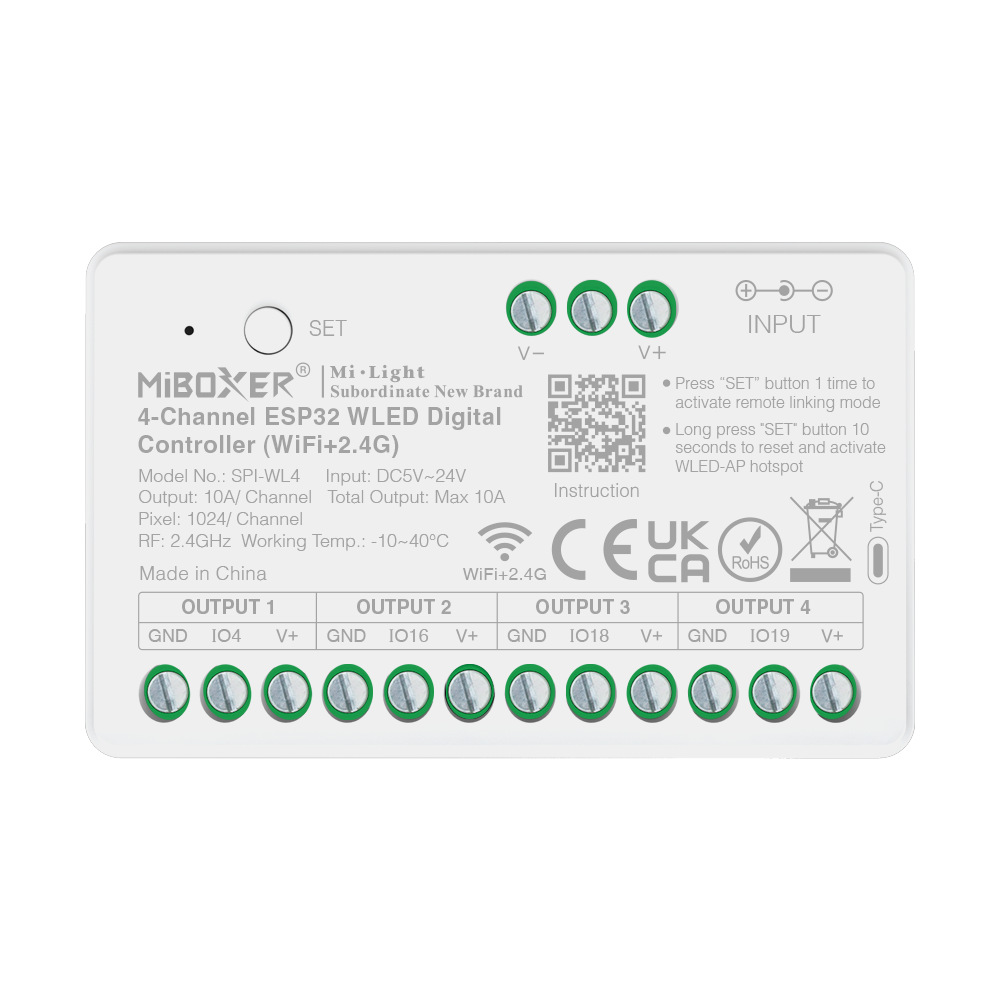

SPI-WL4 4-Channel ESP32 WLED Digital LED Controller – WiFi + 2.4GHz RF, DC5-24V, 1024 Pixels/Channel

Features;

Dual Wireless Control (WiFi + 2.4GHz RF): Built with ESP32 technology supporting both WiFi and 2.4GHz RF communication, allowing stable wireless control of digital SPI LED strips through apps and compatible remotes.
Independent 4-Channel LED Control: Designed with four independent output channels to control up to four SPI LED strip zones separately, providing flexible multi-area lighting management.
High Pixel Capacity for Advanced Effects: Supports up to 1024 pixels per channel, enabling complex lighting animations, addressable LED patterns, and dynamic effects for professional lighting installations.
Multiple Dynamic & Music Lighting Modes: Includes 28 white modes, 80 colorful dynamic effects, and 4 music-responsive modes using built-in microphone or smartphone audio detection for interactive lighting.
Wide Compatibility with SPI LED Chips: Compatible with popular digital LED chipsets including WS2811, WS2812, SK6812, TM1814, APA102, LPD8806, SM16825, USC8904, and many more, making it ideal for digital LED strip projects.

Product Specifications
Product Name	4-Channel ESP32 WLED Digital Controller	Model	SPI-WL4
Input Voltage	DC5V-24V	Output Current	Max 10A
Channels	4 Channel Output	Pixel Capacity	1024 Pixels / Channel
Communication Protocol	WiFi + 2.4GHz RF	RF Control Distance	Up to 30m
Output Signal	SPI (TTL) 800Kbps	Standby Power	0.7W
Compatible LED Types	Single Color / CCT / RGB / RGBW / RGB+CCT	IP Rating	IP20
Working Temperature	-10°C to 40°C	Dimensions	70 × 44 × 17.5 mm
Certification	CE, EMC, LVD, RED	Warranty	5 Years

SPECIFICATION SHEET

PHOTOMETRIC SHEET

Wattage

Lumens

50,000

Hours Life

CCT

Color Temperature guide

2700k - 5000k Kelvins

Supper Tech LED CCT (Correlated Color Temperature) represents lighting appearance in spaces.
The warmer colour is beneficial for the residential spaces. And The cooler color is ideal for workspaces for a more focused environment.

True colors lighting

Color Rendering Index

Super Tech LED Offers a high CRI (90+)source to measure the ability to reproduce the natural color of light more vibrantly, and realistically as compared to lower CRI, which enhances environment visibility.

Full Range Dimming

0-10 Dimmable

Super Tech LED makes it easier to adjust the lighting intensity and brightness. Dimming up and down changes the visual appearance to your preference.

Touch of modernity

Sleek Modern Design

Super Tech LED light enhanced lighting effects that illuminate and touches modernity as well as having an elegant round design with plastic hours that is long-lasting.
