Transform Your Space with High-Performance RGB Lighting

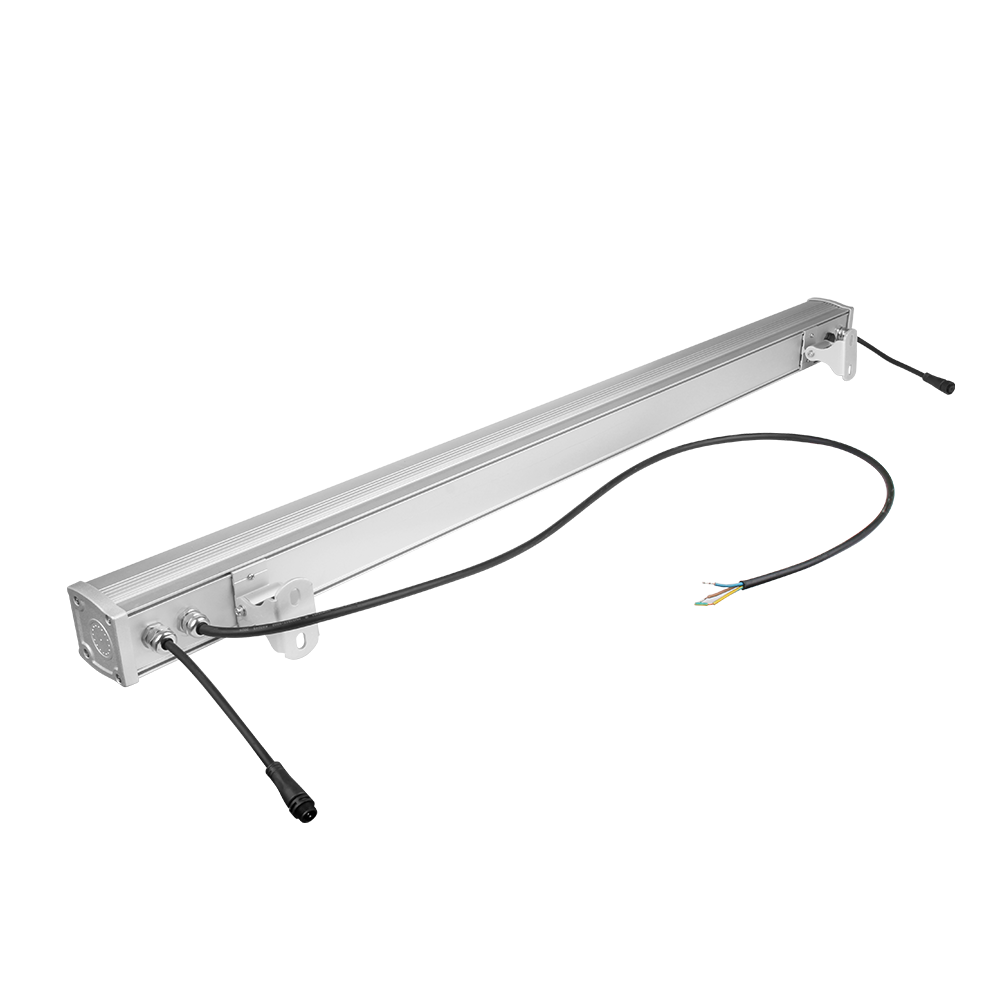

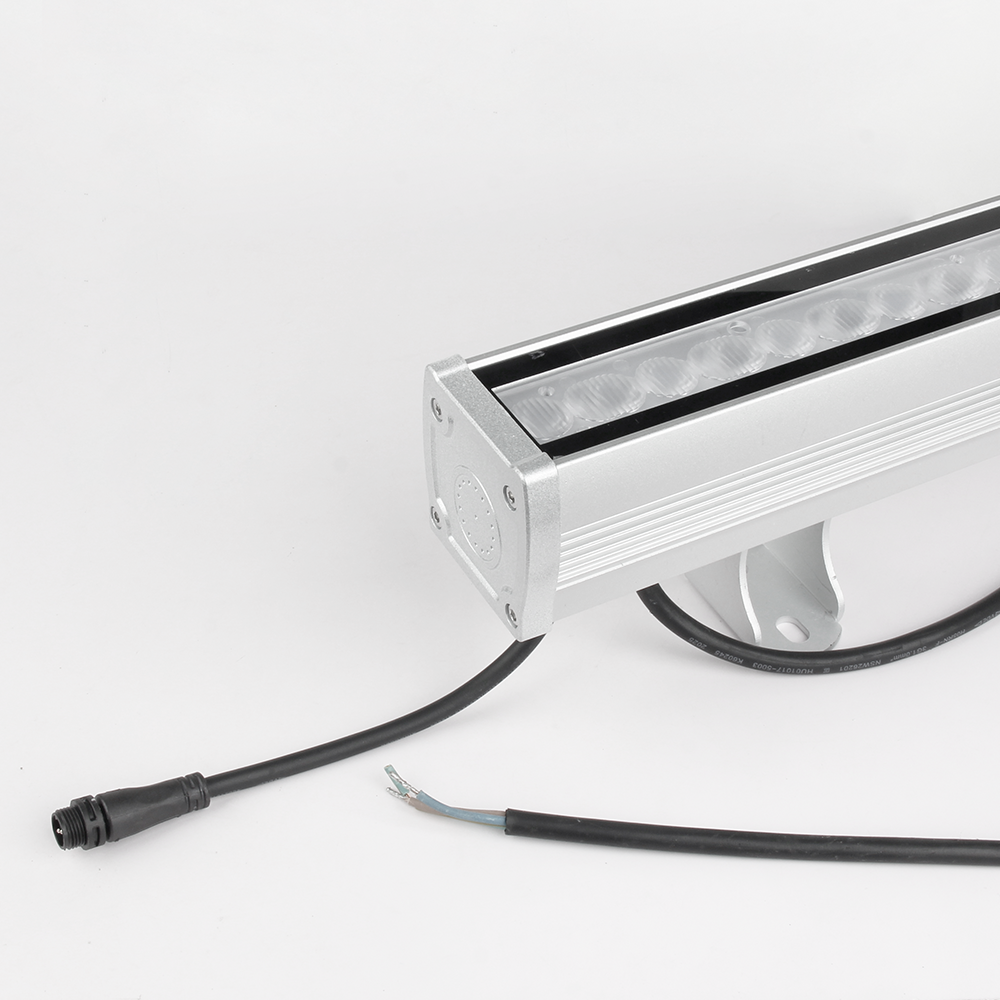

RL48-SPI 48W RGB LED Wall Washer Light – SPI Control, 100-240V Input, IP66 Outdoor Rated

Features

High-Performance RGB Illumination: 48W LED wall washer delivers vibrant RGB lighting with optimized luminous output (R:260LM, G:720LM, B:120LM) for dynamic architectural and façade lighting.
SPI Digital Signal Control: Equipped with a UCS2903B SPI driver chip supporting 800Kbps digital signal transmission, ensuring fast response speed and smooth color transitions.
Long-Distance Lighting Coverage: 15° × 60° beam angle and illumination distance exceeding 15 meters provide strong wall-washing effects for buildings, landscapes, and architectural features.
Durable Outdoor Construction: IP66 waterproof housing protects the fixture against dust, rain, and harsh outdoor conditions, making it ideal for exterior installations.
Wide Voltage Compatibility: Supports universal AC100-240V input (50/60Hz) and works with SPI controllers for advanced RGB lighting control in professional lighting systems.

Download Specification Sheet Her

Product Specifications
Model	RL48-SPI	Power	48W
Input Voltage	AC100-240V, 50/60Hz	Luminous Flux	R:260LM / G:720LM / B:120LM
Beam Angle	15° × 60°	Illumination Distance	>15m
Control Signal	SPI (TTL) 800Kbps	Driver Chip	UCS2903B (24PCS)
IP Rating	IP66	Operating Temperature	-20°C to 45°C
Certifications	CE, EMC, LVD, RED	Mounting Type	Wall / Ground Mount
Application	Architectural Lighting	Control Requirement	SPI Controller Required

SPECIFICATION SHEET

PHOTOMETRIC SHEET

Wattage

Lumens

50,000

Hours Life

CCT

Color Temperature guide

2700k - 5000k Kelvins

Supper Tech LED CCT (Correlated Color Temperature) represents lighting appearance in spaces.
The warmer colour is beneficial for the residential spaces. And The cooler color is ideal for workspaces for a more focused environment.

True colors lighting

Color Rendering Index

Super Tech LED Offers a high CRI (90+)source to measure the ability to reproduce the natural color of light more vibrantly, and realistically as compared to lower CRI, which enhances environment visibility.

Full Range Dimming

0-10 Dimmable

Super Tech LED makes it easier to adjust the lighting intensity and brightness. Dimming up and down changes the visual appearance to your preference.

Touch of modernity

Sleek Modern Design

Super Tech LED light enhanced lighting effects that illuminate and touches modernity as well as having an elegant round design with plastic hours that is long-lasting.
