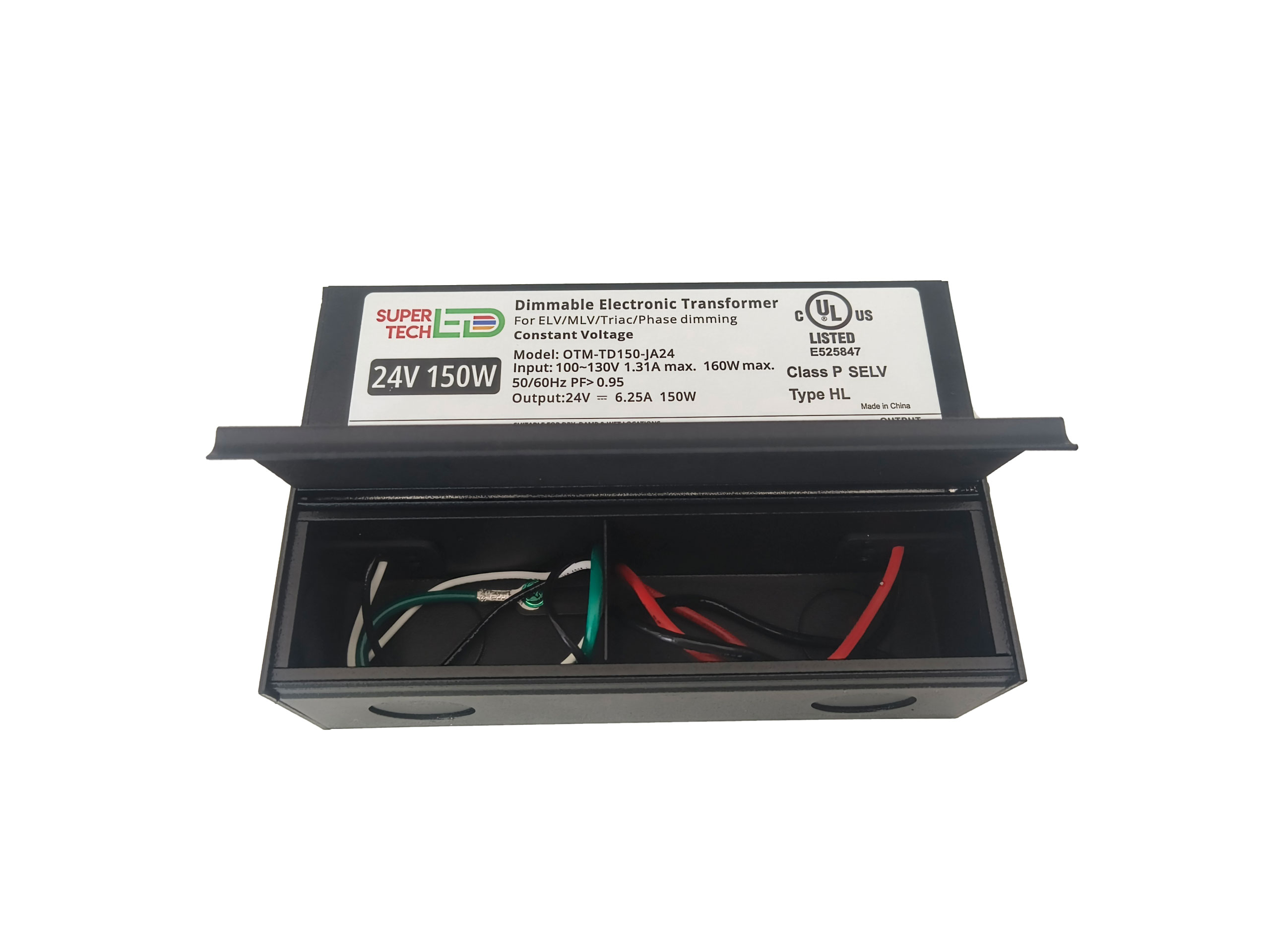

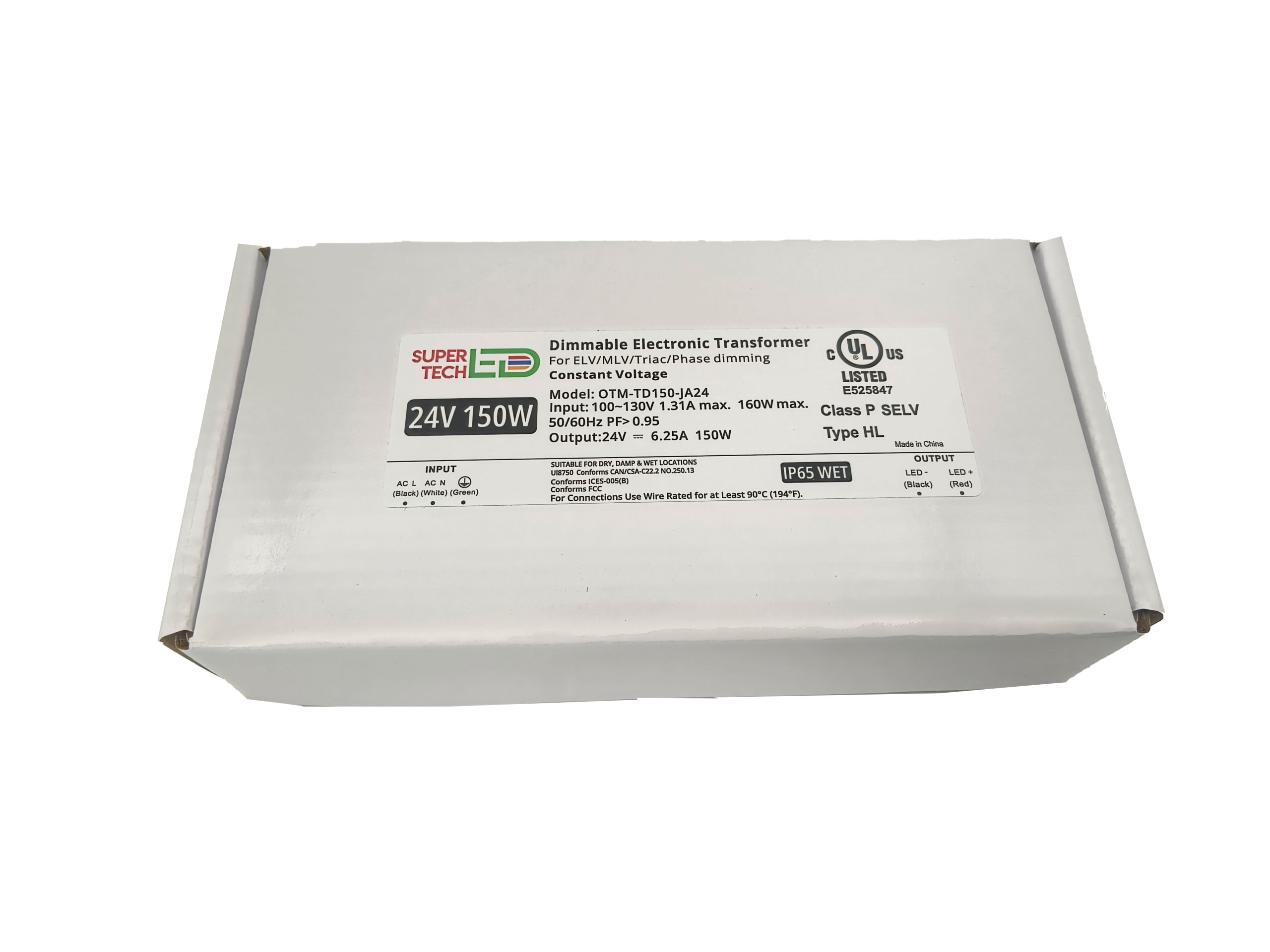

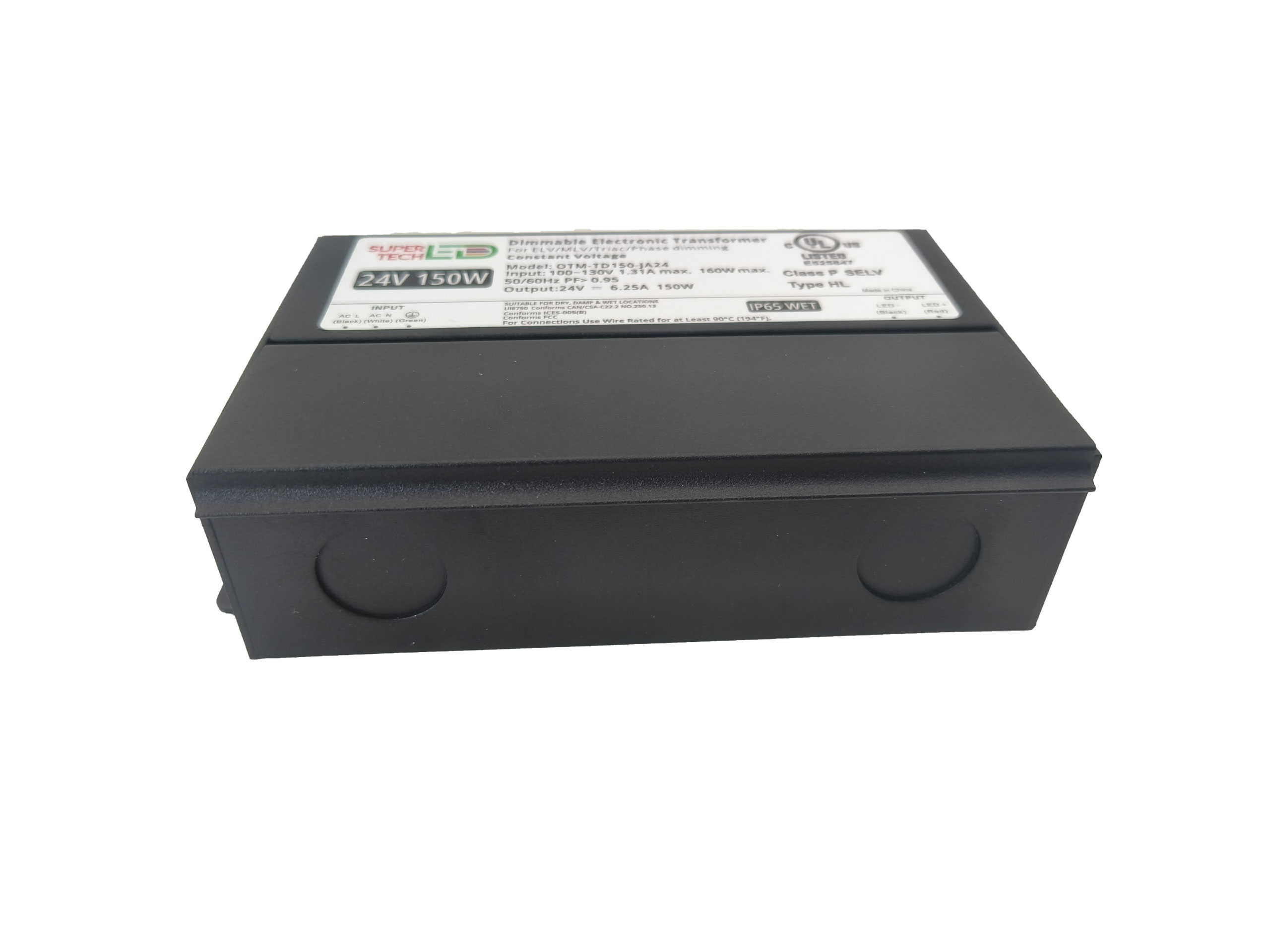

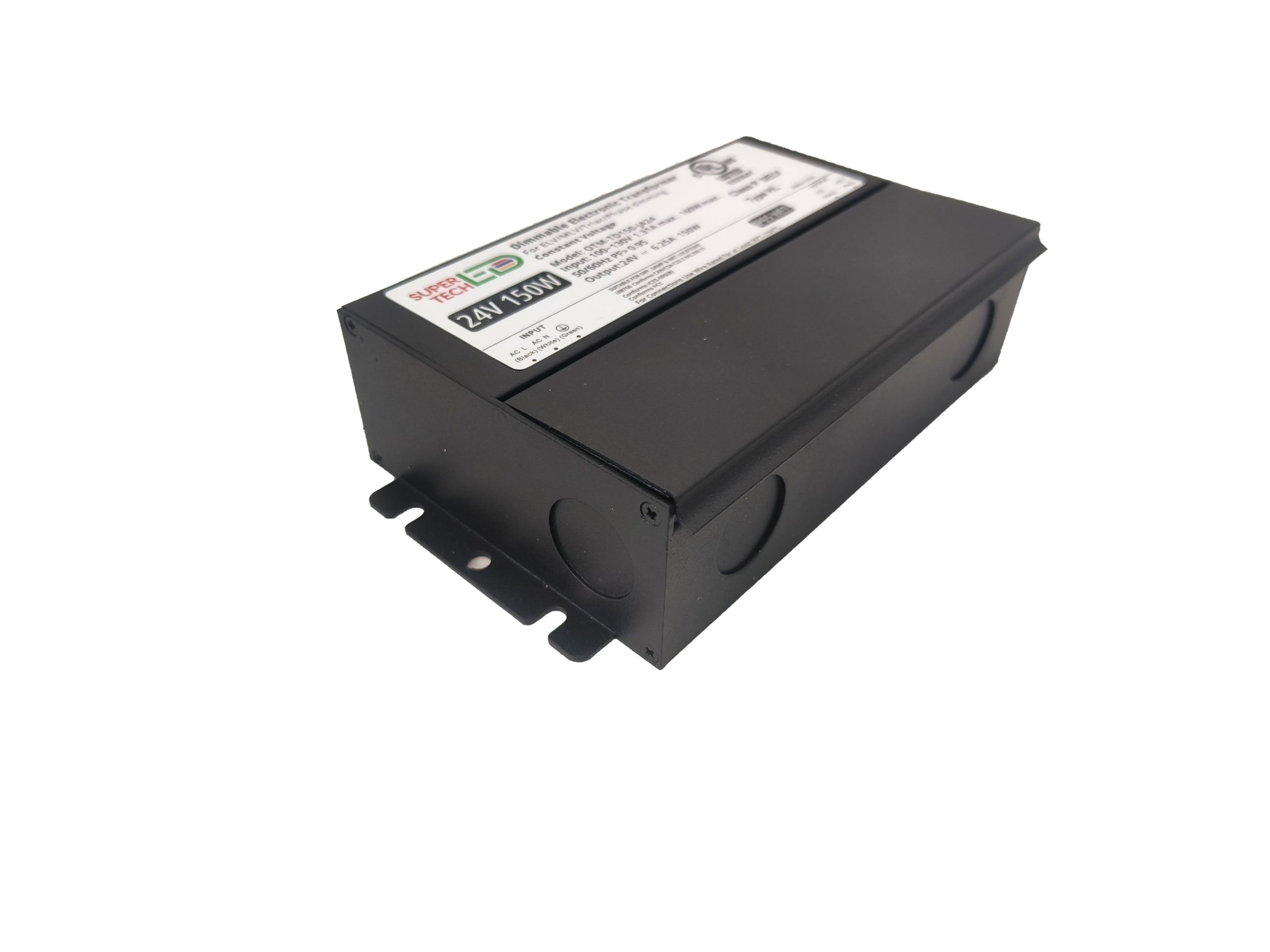

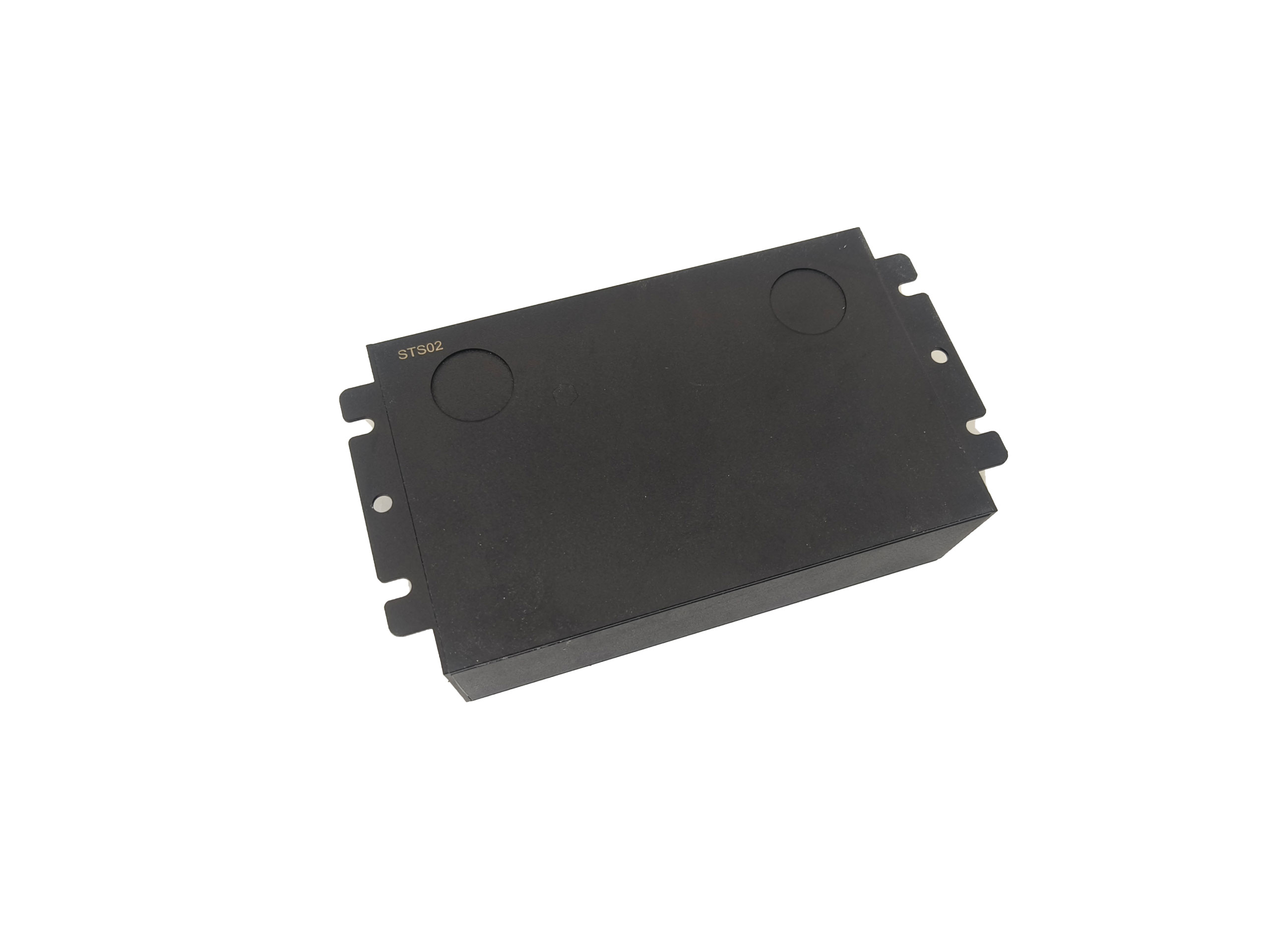

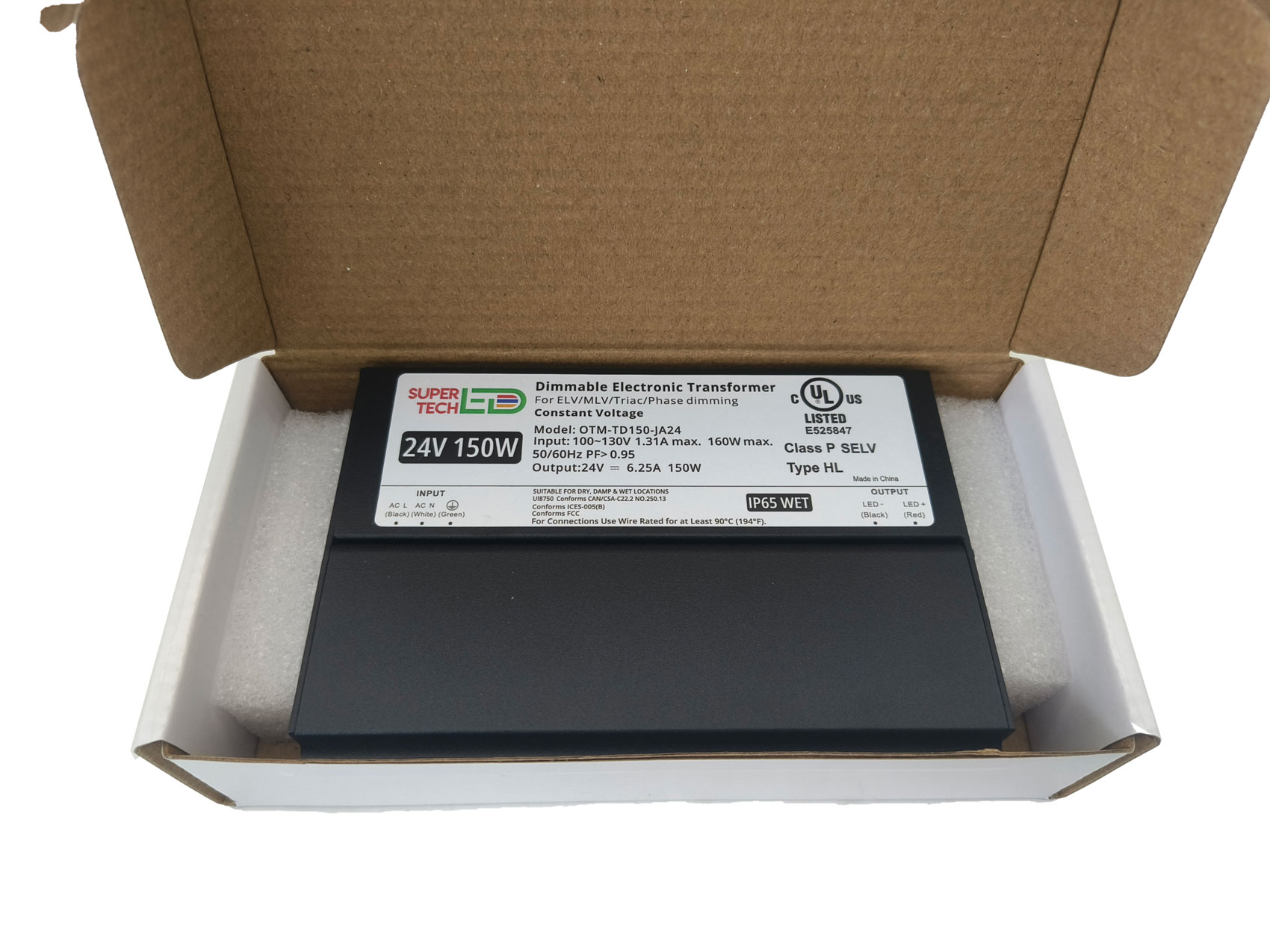

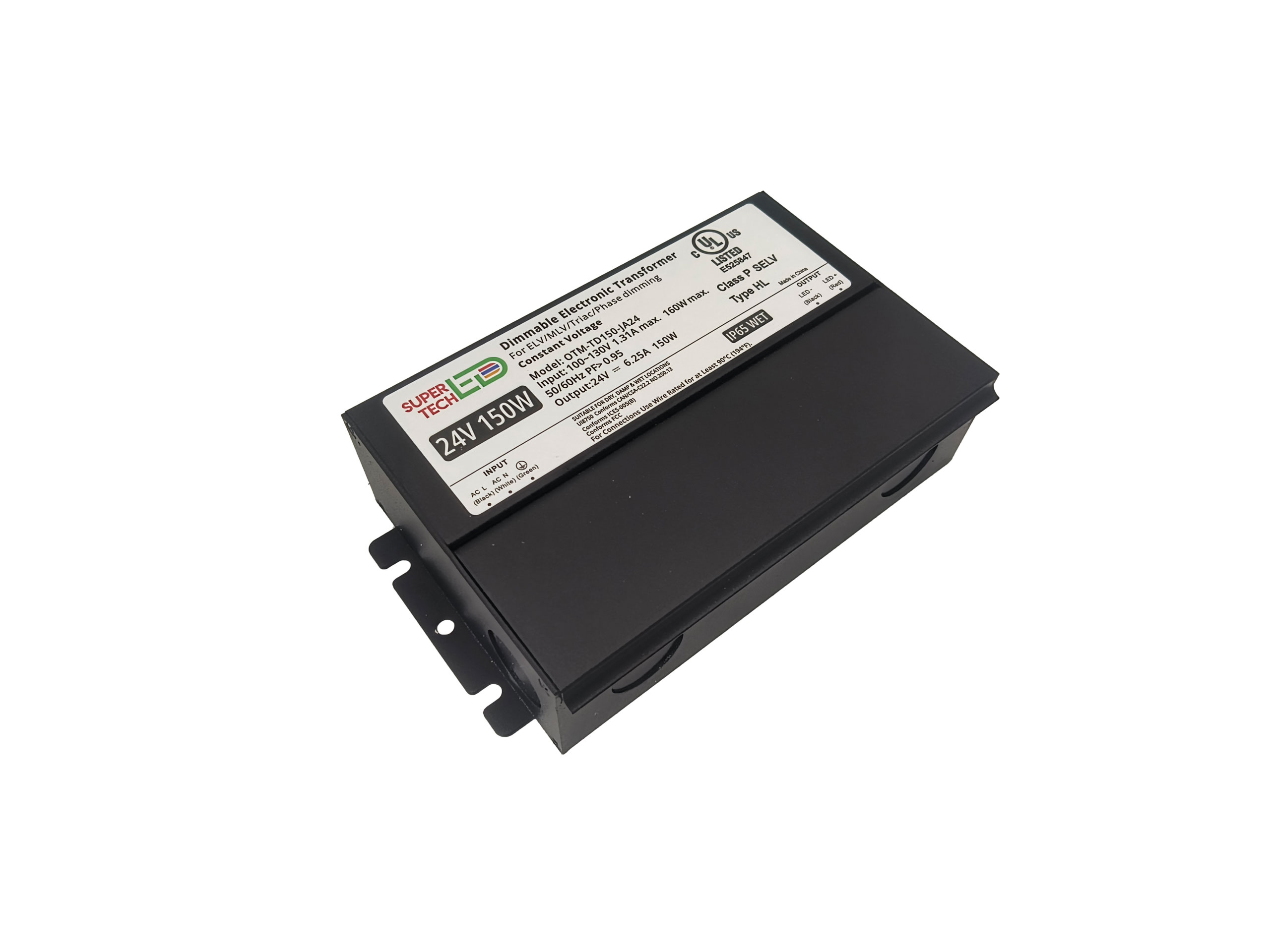

OTM-TD150-JA24 Electronic Transformer – 150W 24V – Low THD & High Efficiency – UL Listed | 120V AC
Features:
- Full-Range Dimming Compatibility: 100% smooth dimming support for Triac, ELV, and MLV dimmers.
- High Load Efficiency: Operates at 90% efficiency, ensuring optimized energy consumption.
- Ideal for Large Installations: Designed for residential and commercial LED lighting with wide 20-100% load compatibility.
- Enhanced Protection System: Short-circuit, overload safeguards, and automatic power recovery.
- Certified for Safety & Longevity: UL, Class P, Type HL, RoHS compliant, with a 5-year guarantee.
Download Specification Sheet Here
Description
| Product Attributes | |||
|---|---|---|---|
| Model Number | OTM-TD150-JA24 | Rated Power | 150W |
| Rated Voltage | 24V | Rated Current | 6.25A |
| Voltage Tolerance | ±1.5V | Input Voltage | 120V AC |
| Frequency Range | 47-63Hz | Power Factor | 0.94@120V AC |
| Efficiency | 88% @ 120V AC | Total Harmonic Distortion (THD) | <20% @ Max Load |
| AC Current | 0.9A | Leakage Current | <0.5mA @ 120V AC |
| Operating Temperature | -40°C to 60°C | Storage Temperature | -40°C to 90°C |
| Certification | UL Listed, Class 2, Class P, Type HL, SELV, RoHS | ||
| Dimensions | 127 × 82 × 41.8 mm (5 × 3.22 × 1.64 inches) | ||
| Application | LED Strips, LED Tape, LED Modules, Residential & Commercial Lighting | ||
| Protection | Short-circuit & Overload Protection (Auto Recovery) | ||
| Warranty | 5 Years | ||
150W
Wattage
Lumens
50,000
Hours Life
CCT
Color Temperature guide
2700k - 5000k Kelvins
Supper Tech LED CCT (Correlated Color Temperature) represents lighting appearance in spaces.
The warmer colour is beneficial for the residential spaces. And The cooler color is ideal for workspaces for a more focused environment.
True colors lighting
Color Rendering Index
Super Tech LED Offers a high CRI (90+)source to measure the ability to reproduce the natural color of light more vibrantly, and realistically as compared to lower CRI, which enhances environment visibility.
Full Range Dimming
0-10 Dimmable
Super Tech LED makes it easier to adjust the lighting intensity and brightness. Dimming up and down changes the visual appearance to your preference.
Touch of modernity
Sleek Modern Design
Super Tech LED light enhanced lighting effects that illuminate and touches modernity as well as having an elegant round design with plastic hours that is long-lasting.
