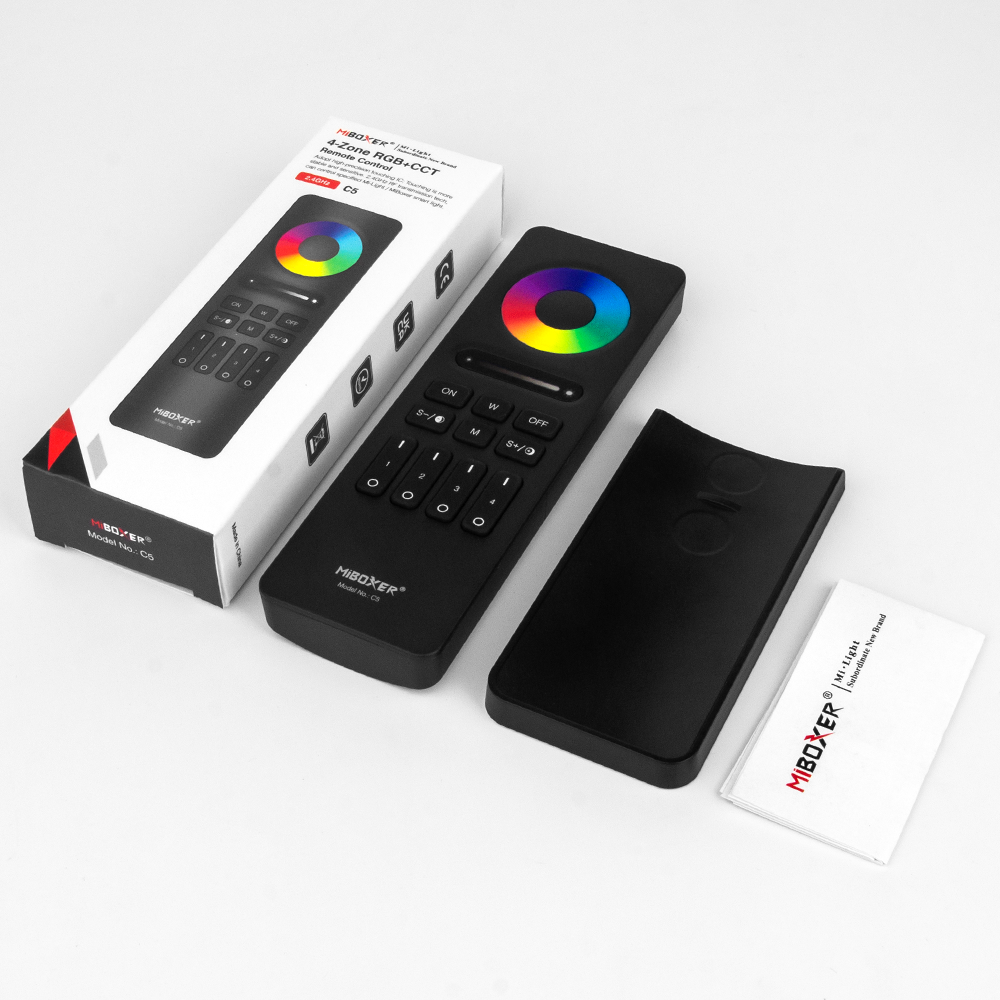

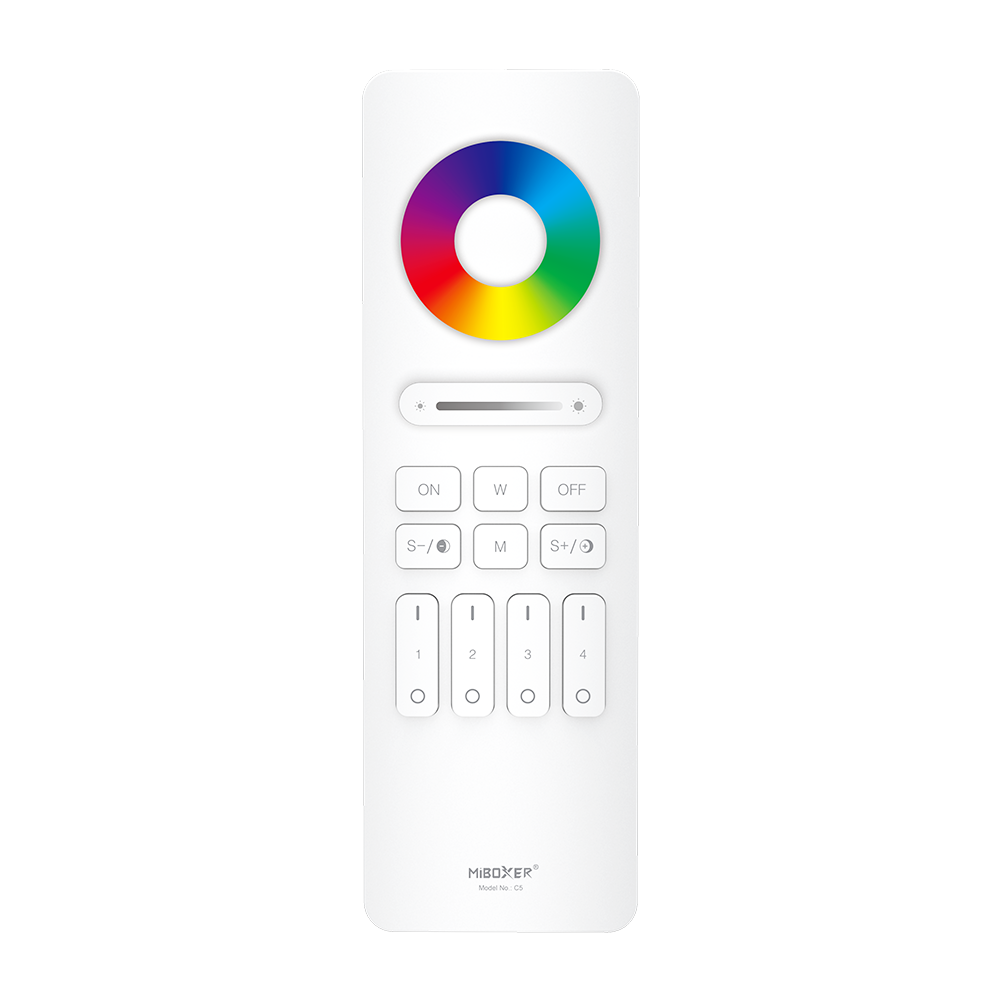

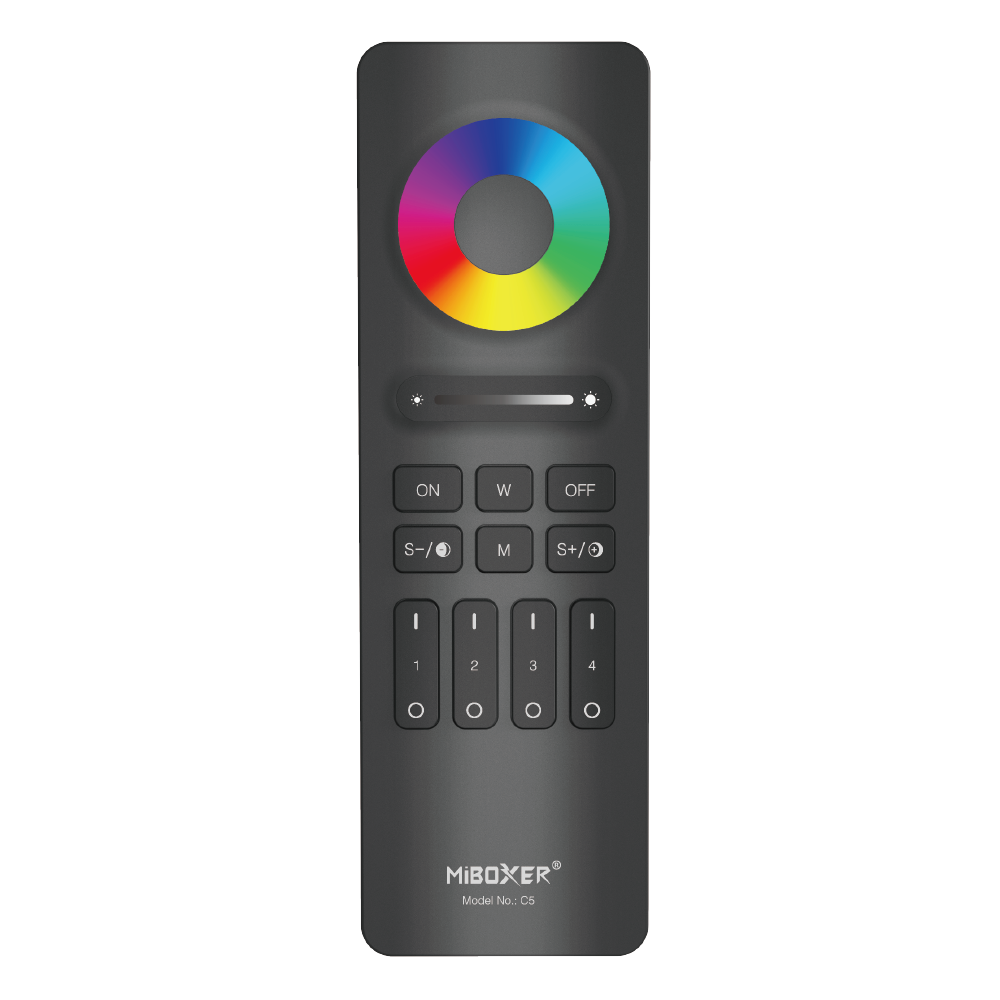

C5 – 4-Zone RGB+CCT Remote, 2.4GHz RF, Dynamic Mode & Scene Control, Magnetic Wall Holder, 30m Range

Features

  • Reliable 2.4GHz Wireless Control: Uses advanced 2.4G RF transmission with strong anti-interference performance, allowing stable multi-zone control for residential and commercial RGB+CCT lighting installations.
  • Four-Zone Operation: Independently manage up to four lighting zones, enabling flexible control of multiple LED controllers or fixtures simultaneously, ideal for large open spaces, galleries, and smart home environments.

  • Full RGB+CCT Adjustment: Offers total control over RGB color, CCT tuning, brightness, speed, and saturation while supporting smooth mode switching for dynamic scenes and white lighting applications.

  • Magnetic Wall Mount Design: Includes a simple magnetic holder for fast and clean wall installation, providing easy access while maintaining a sleek and modern control interface.

  • Certified & Durable Build: Designed for professional use with CE, EMC, LVD, and RED certifications, supporting indoor operations from –10°C to 40°C with low standby power consumption.

Download Specification Sheet Here


SPECIFICATION SHEET


ASK FOR PRICE

Description
Product 4-Zone RGB+CCT Remote Model C5
Working Voltage 3V (AAA × 2) Standby Consumption 15μA
Transmission Power 6 dBm Protocol 2.4GHz RF
Modulation GFSK Control Distance 30m
Working Temperature -10°C ~ 40°C Radio Standard EN 300 440 V2.2.1
EMC Standard EN 301 489-1 / 489-3 Safety Standard EN 61347-1 / 61347-2-11
Additional Standard EN 62493:2015+A1:2022 Certification CE, EMC, LVD, RED
Dimensions 140mm × 86.5mm × 18mm Mounting Magnetic Holder
Control Type RGB+CCT Zones 4 Independent Zones
