Transform Your Space with Advanced LED Control Technology

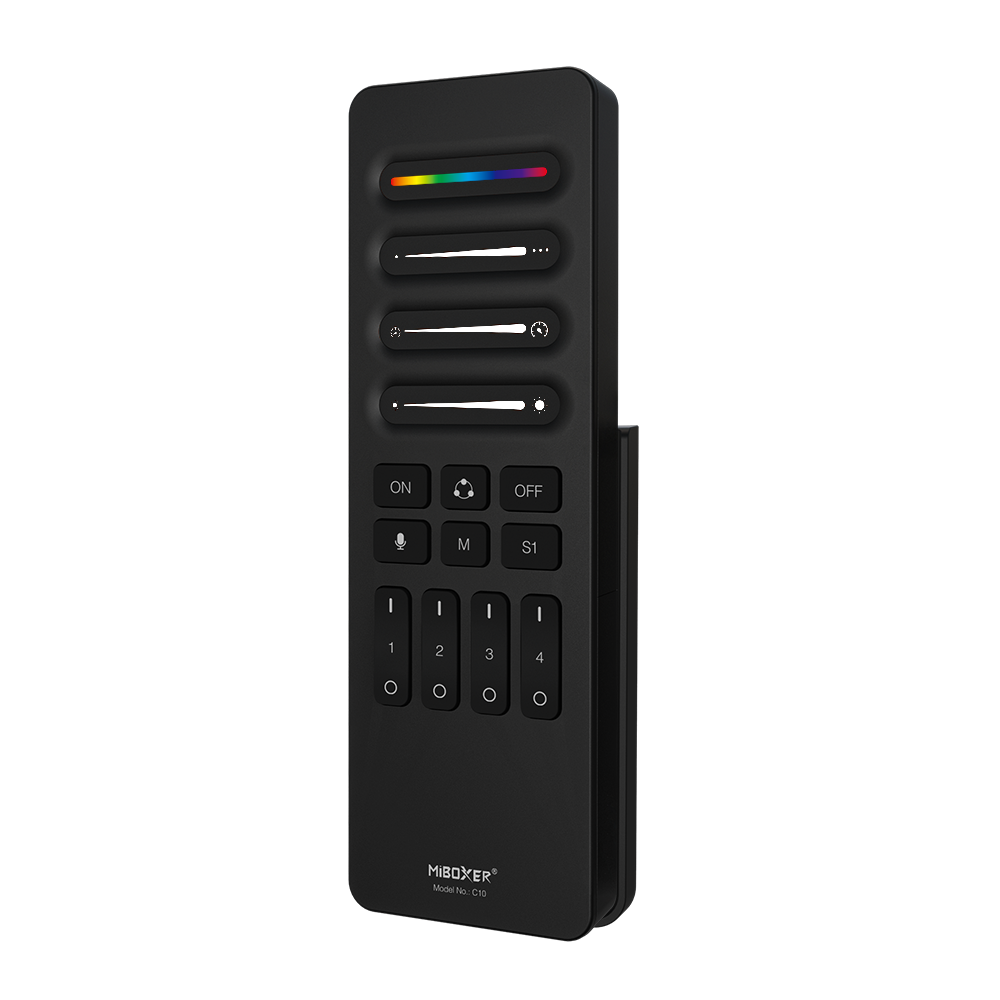

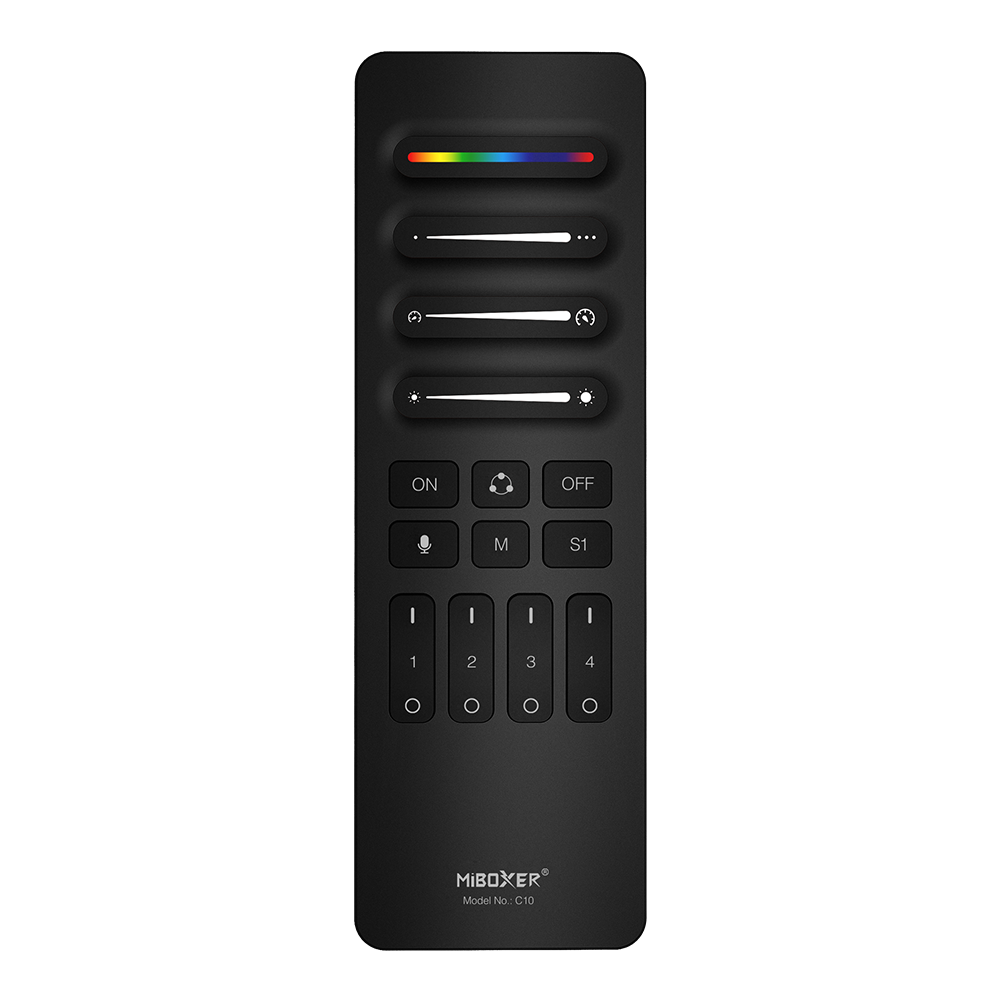

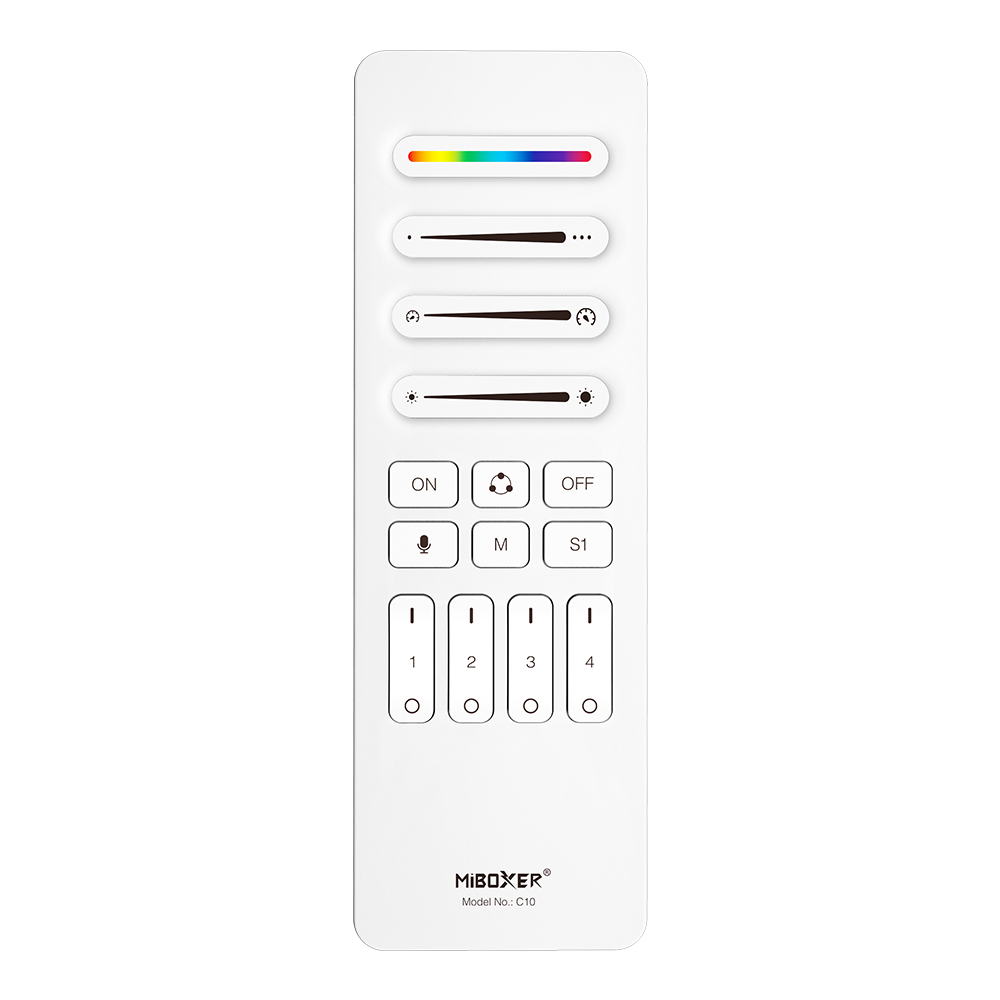

C10 4-Channel SPI LED Remote Controller – 2.4GHz Wireless, 30m Control Distance, Multi-Controller Compatible

Features

Advanced 2.4GHz Wireless Control: Uses stable 2.4GHz RF wireless transmission technology to control SPI LED controllers with fast response, strong anti-interference performance, and reliable operation up to 30 meters.
4-Channel Independent Control: Supports four individual channels allowing independent color, brightness, and effect adjustments for multi-zone SPI LED strip lighting installations.
Dynamic Lighting Scene Customization: Create personalized lighting effects with dynamic, static, and music modes while adjusting pixel points, color settings, animation speed, and lighting patterns.
Scene Memory Function:
Save up to four custom lighting scenes for quick recall, enabling instant switching between preferred colors, brightness levels, and dynamic effects.
Commercial & Decorative Lighting Applications:
Ideal for architectural lighting, digital LED strips, stage lighting, commercial displays, and home ambient lighting systems requiring flexible multi-zone control.

Product Specifications
Product Name	4-Channel SPI Remote	Model	C10
Working Voltage	3V (AAA ×2 Batteries)	RF Frequency	2.4GHz
Control Distance	Up to 30m	Transmission Power	6dBm
Modulation Method	GFSK	Standby Power	15μA
Channels	4 Independent Channels	Working Temperature	-10°C to 40°C
Control Modes	Dynamic / Static / Music	Scene Memory	Supports 4 Scenes
Installation	Magnetic Mounting	Certification	CE, EMC, RED

SPECIFICATION SHEET

PHOTOMETRIC SHEET

Wattage

Lumens

50,000

Hours Life

CCT

Color Temperature guide

2700k - 5000k Kelvins

Supper Tech LED CCT (Correlated Color Temperature) represents lighting appearance in spaces.
The warmer colour is beneficial for the residential spaces. And The cooler color is ideal for workspaces for a more focused environment.

True colors lighting

Color Rendering Index

Super Tech LED Offers a high CRI (90+)source to measure the ability to reproduce the natural color of light more vibrantly, and realistically as compared to lower CRI, which enhances environment visibility.

Full Range Dimming

0-10 Dimmable

Super Tech LED makes it easier to adjust the lighting intensity and brightness. Dimming up and down changes the visual appearance to your preference.

Touch of modernity

Sleek Modern Design

Super Tech LED light enhanced lighting effects that illuminate and touches modernity as well as having an elegant round design with plastic hours that is long-lasting.
