Architectural Linear Suspended Fixture – Downlight Only – Power And CCT Adjustable

Features:

• Power & Output: Available in two sizes — the 4FT model selectable at 30W/40W/50W (3450–5750LM) and the 8FT model selectable at 50W/64W/80W (5750–9200LM), both at 115 lm/W efficacy, for flexible, energy-efficient illumination across commercial spaces of varying scale

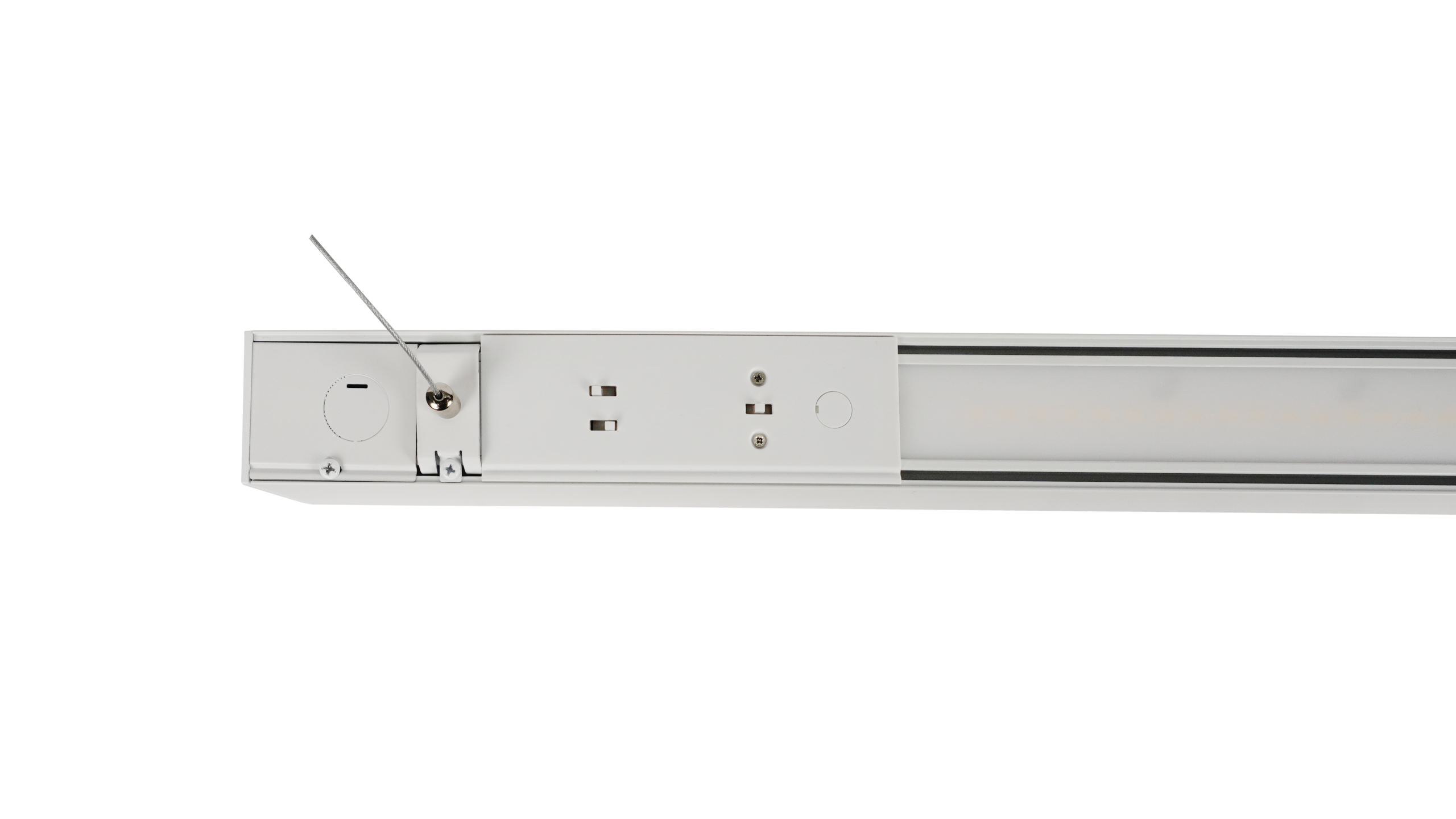

• Adjustable CCT: Selectable color temperature of 3500K, 4000K, or 5000K via built-in slide switch, letting the fixture match a variety of interior lighting environments
• Light Distribution: Configurable at 70% downlight/30% uplight, 90% downlight/10% uplight, or 100% downlight, offering versatile ambient and task lighting combinations
• Voltage Compatibility: Designed for AC120–277V input, suitable for standard commercial electrical systems

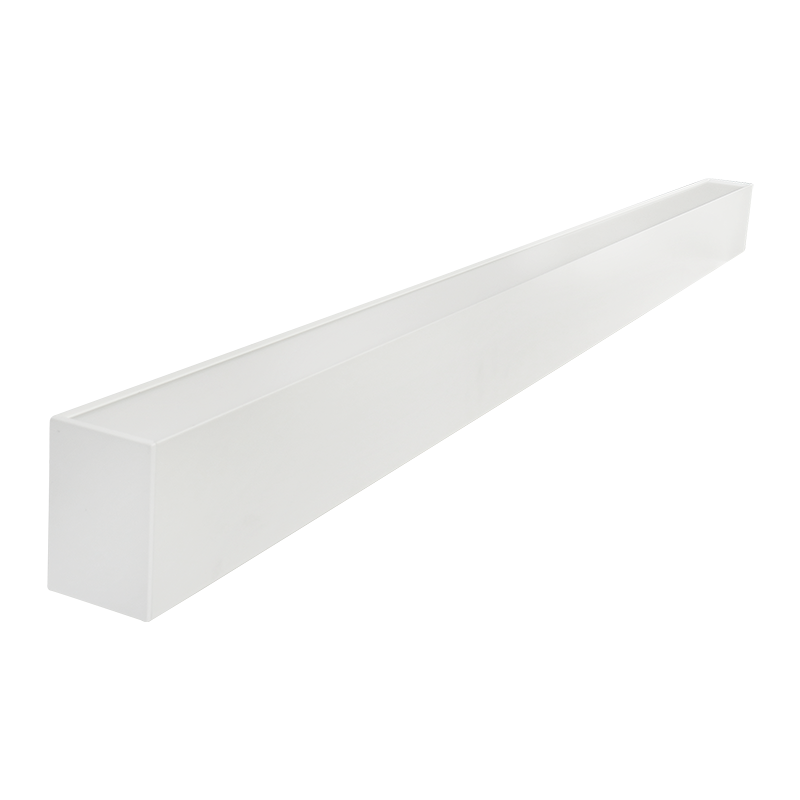

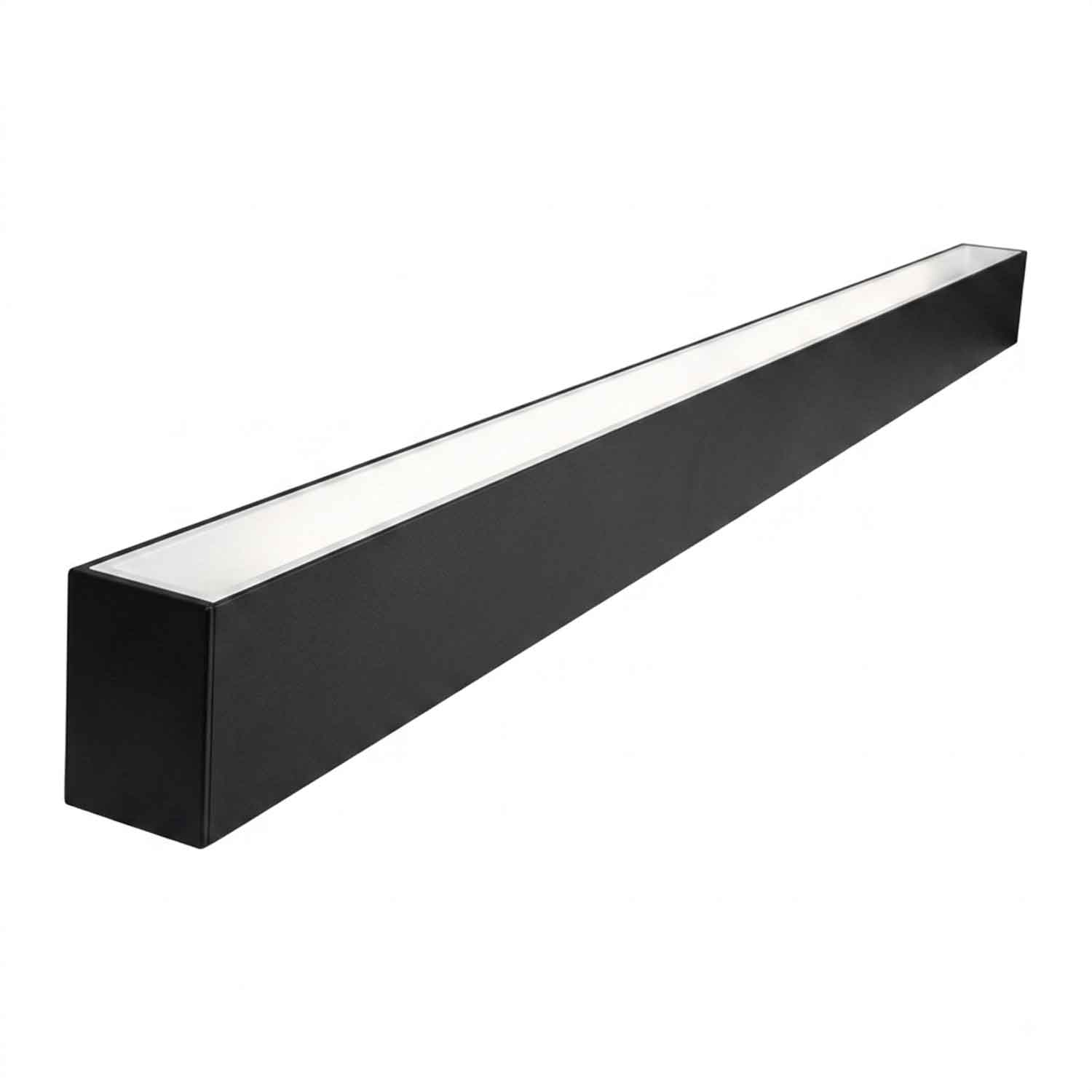

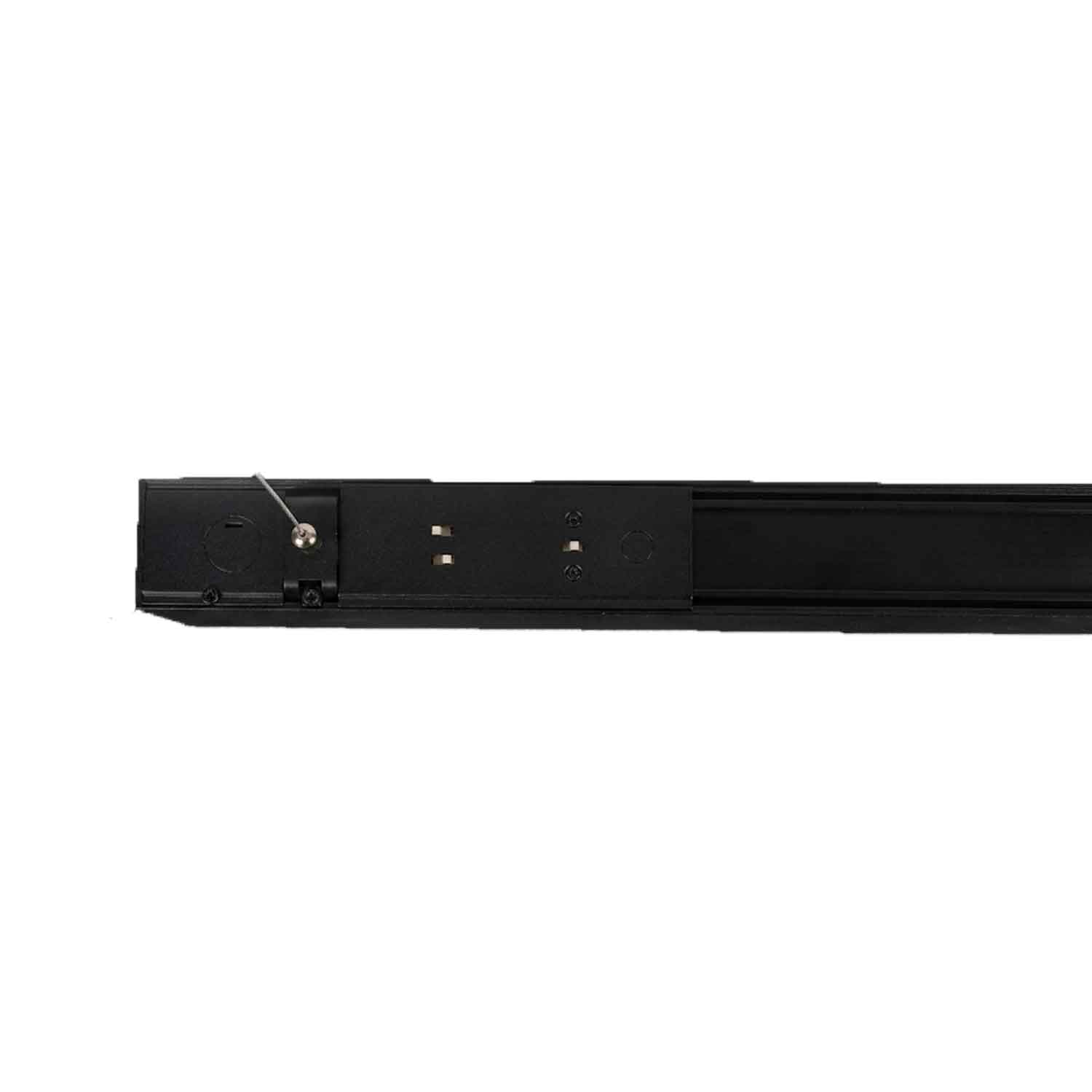

• Construction: Extruded-aluminum housing well-suited for open-plan space design, available in black and white finishes
• Dimming: Smooth 0–10V dimming standard (Dim+/Dim-) for compatibility with external lighting control systems

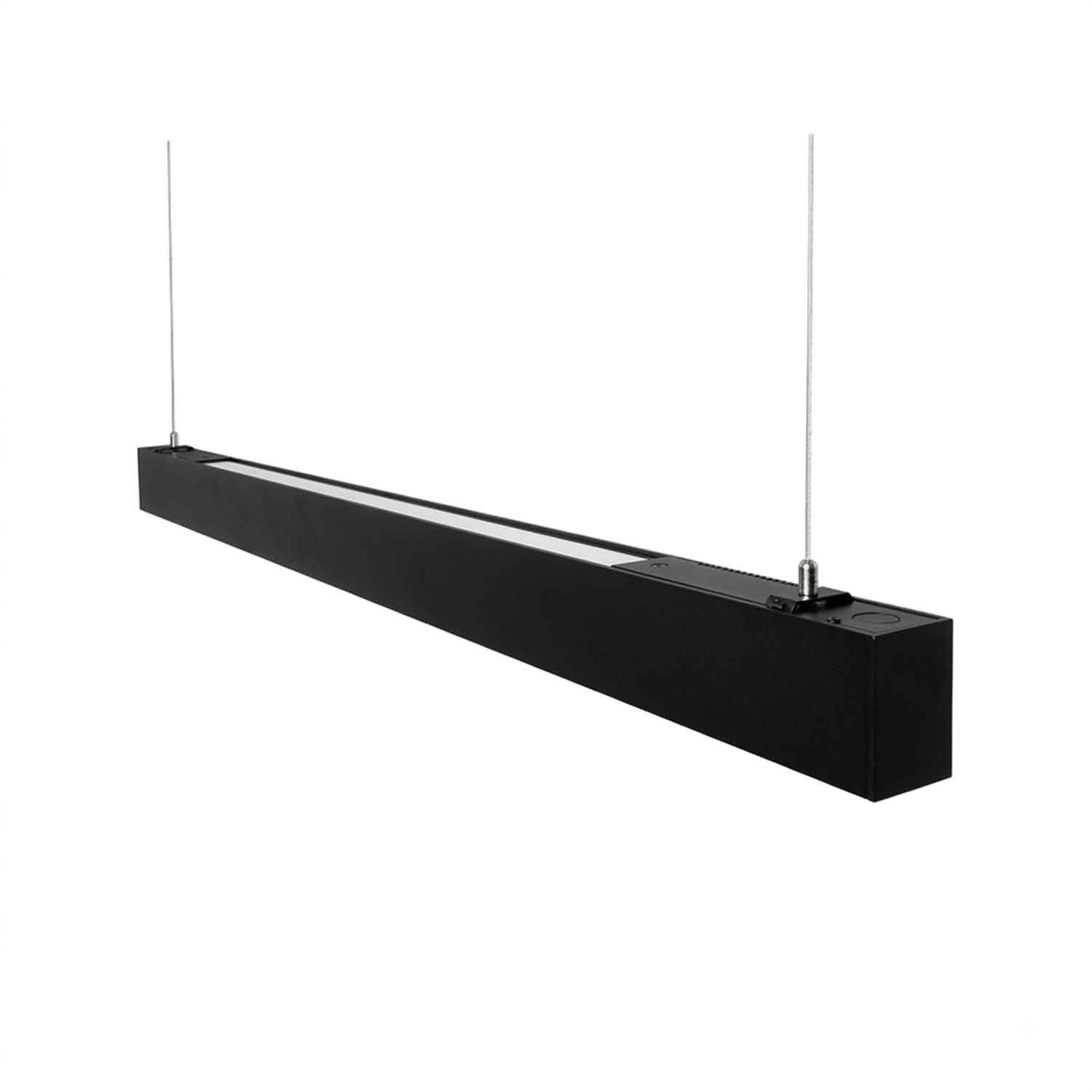

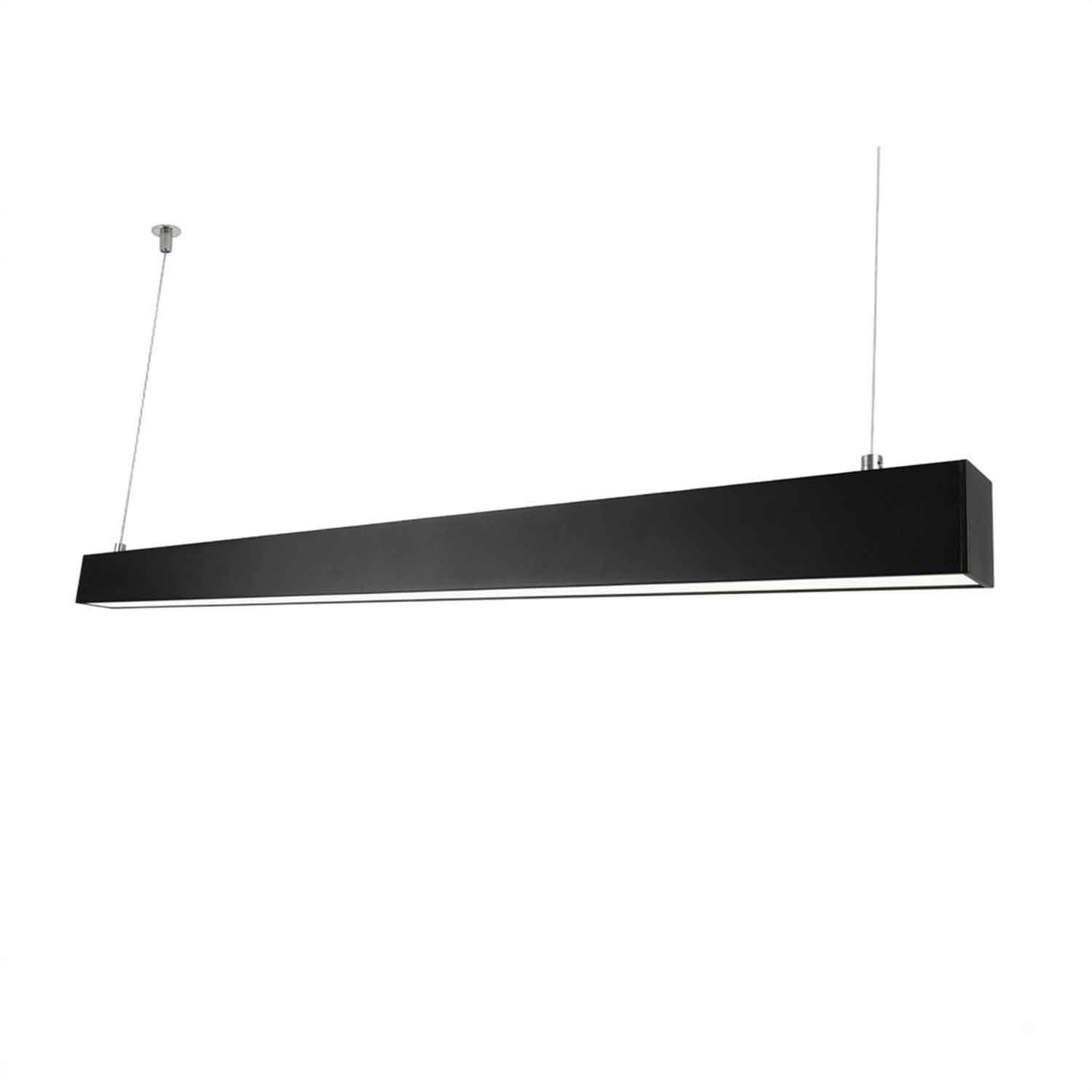

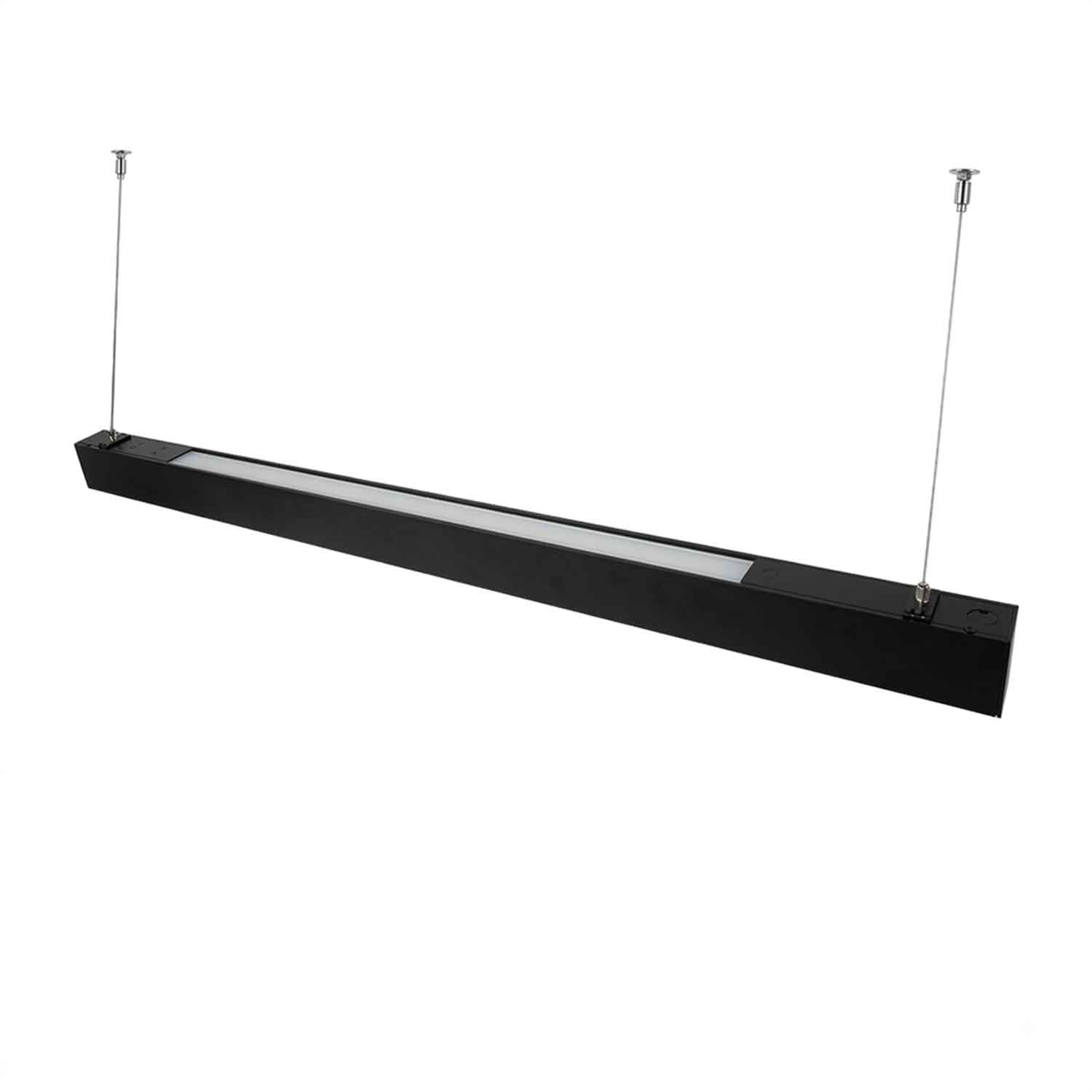

• Installation Flexibility: Supports standard suspended (pendant) mounting on drywall ceilings, plus continuous row-mounting (daisy connection) in straight, T-mounted, and X-mounted configurations for open-plan layouts
• Optional Emergency Backup: 8W emergency power option provides up to 90 minutes of operation during power outages
• Optional Sensor: Available with external or built-in microwave motion sensor for automatic on/off control
• Application: Ideal for offices, retail stores, supermarkets, and other commercial interiors requiring uniform, adjustable linear illumination
• Durability & Rating: Backed by a 5-year warranty, Ra>80, and PF>0.9 for reliable, long-term performance
