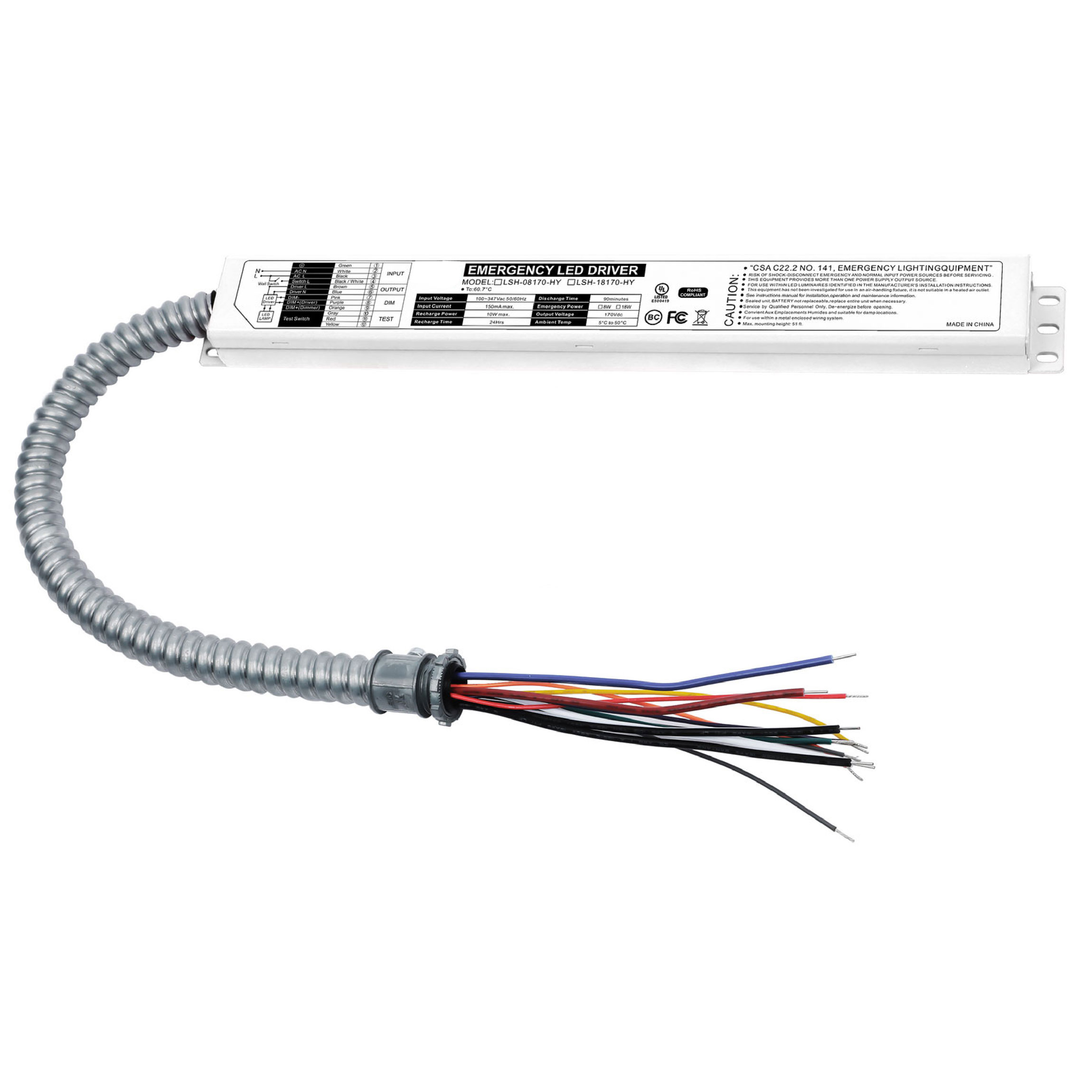

8W Emergency LED Driver Battery Backup AC 100~347V | LSH-08170-HY

Features

Compliance & Testing: Listed to UL924 and tested to CSA C22.2 No. 141.
Installation: Suitable for both field and factory installation.
Energy Efficiency: Low energy consumption, compliant with CEC Title 20.
Performance: High output voltage with constant power delivery.
Self-testing: Built-in self-testing feature for reliability.
Battery Protection: Includes overcharge and over-discharge protection.
Wiring: Designed for wiring to the LED driver’s AC input.

Applications

Commercial Downlights
LED Panels
Linear Strip Fixtures
LED Troffer lights
LED wall pack lights
LED vapor-tight lights

Download Specification Sheet Here

Product Attributes
Emergency Power	8W	Battery	Li-ion
Input Current	150mA max	Input Voltage	100-347V/AC
Recharge Time	24Hrs	Ambient Temp	41~122°F(5~50°C)
Recharge Power	10W	Weight	1.7 lbs(0.8kg) max
Output Voltage	170Vdc	Surge Protection	Live-Neutral 3KV
Warranty	5 Years

SPECIFICATION SHEET

PHOTOMETRIC SHEET

Wattage

Lumens

Hours Life

CCT

Color Temperature guide

2700k - 5000k Kelvins

Supper Tech LED CCT (Correlated Color Temperature) represents lighting appearance in spaces.
The warmer colour is beneficial for the residential spaces. And The cooler color is ideal for workspaces for a more focused environment.

True colors lighting

Color Rendering Index

Super Tech LED Offers a high CRI (90+)source to measure the ability to reproduce the natural color of light more vibrantly, and realistically as compared to lower CRI, which enhances environment visibility.

Full Range Dimming

0-10 Dimmable

Super Tech LED makes it easier to adjust the lighting intensity and brightness. Dimming up and down changes the visual appearance to your preference.

Touch of modernity

Sleek Modern Design

Super Tech LED light enhanced lighting effects that illuminate and touches modernity as well as having an elegant round design with plastic hours that is long-lasting.
