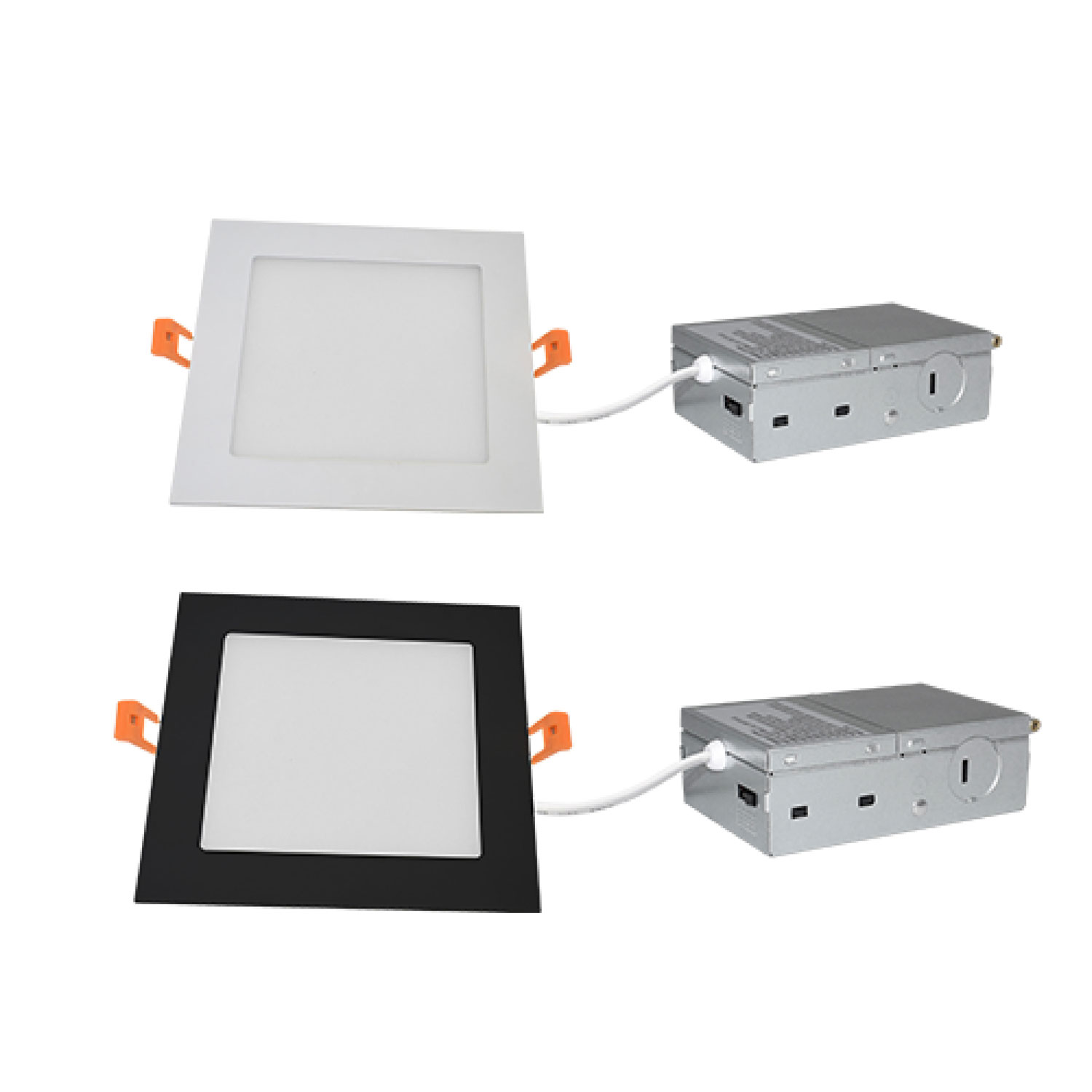

6″ 15W LED Square Slim Panel , 1200 Lumens, 5CCT Selectable, Triac & 0-10V Dimmable, ETL Certified,
Features;
-
Energy Efficient: Replaces traditional CFL, HID, or incandescent downlights with 1200 lumens of high-quality LED output, offering up to 80% energy savings in residential and commercial spaces.
-
Selectable Light: 5CCT adjustable options (2700K, 3000K, 3500K, 4000K, 5000K) allow users to easily customize brightness and color temperature for different room settings and moods.
-
Smooth Dimming: Compatible with Triac dimming (AC120V) and 0-10V systems, delivering flicker-free, comfortable illumination with continuous brightness control.
-
Durable & Slim: Built with LM80 SMD LEDs, PS+Aluminum housing, available in white or black finishes, ensuring long-term durability with an ultra-thin, modern profile.
-
Easy Installation: Designed with ceiling clips and pre-wired poke-in connectors for fast installation, ETL certified, wet location rated, and backed by a 50,000-hour lifespan.
Download Specification Sheet Here
Description
| Model | SZ-DL15W6-SP-S-CCT-277V | Size | 6 Inch |
|---|---|---|---|
| Wattage | 15W | Lumens | 1200LM |
| CCT Selectable | 2700K / 3000K / 3500K / 4000K / 5000K | CRI | 80 |
| Beam Angle | 120° | Input Voltage | 100–277V |
| Power Factor | 0.9 | Dimming | Triac (AC120V), 0-10V (Red +, Yellow -) |
| Housing Color | White / Black | LED Type | LM80 SMD LEDs |
| Lifespan | 50,000 Hours | Certifications | ETL |
| Rating | Suitable for Wet Locations | Installation | Ceiling Clips + Pre-wired Poke-in Connectors |
| Package Size | 54.5 x 26 x 44 cm | Quantity/Carton | 24 pcs |
| Gross Weight | 13.7 Kg | Warranty | 5 Years Limited |
15W
Wattage
1200LM
Lumens
50,000
Hours Life
2700K/3000K/3500K/4000K/5000K
CCT
Color Temperature guide
2700k - 5000k Kelvins
Supper Tech LED CCT (Correlated Color Temperature) represents lighting appearance in spaces.
The warmer colour is beneficial for the residential spaces. And The cooler color is ideal for workspaces for a more focused environment.
True colors lighting
Color Rendering Index
Super Tech LED Offers a high CRI (90+)source to measure the ability to reproduce the natural color of light more vibrantly, and realistically as compared to lower CRI, which enhances environment visibility.
Full Range Dimming
0-10 Dimmable
Super Tech LED makes it easier to adjust the lighting intensity and brightness. Dimming up and down changes the visual appearance to your preference.
Touch of modernity
Sleek Modern Design
Super Tech LED light enhanced lighting effects that illuminate and touches modernity as well as having an elegant round design with plastic hours that is long-lasting.
