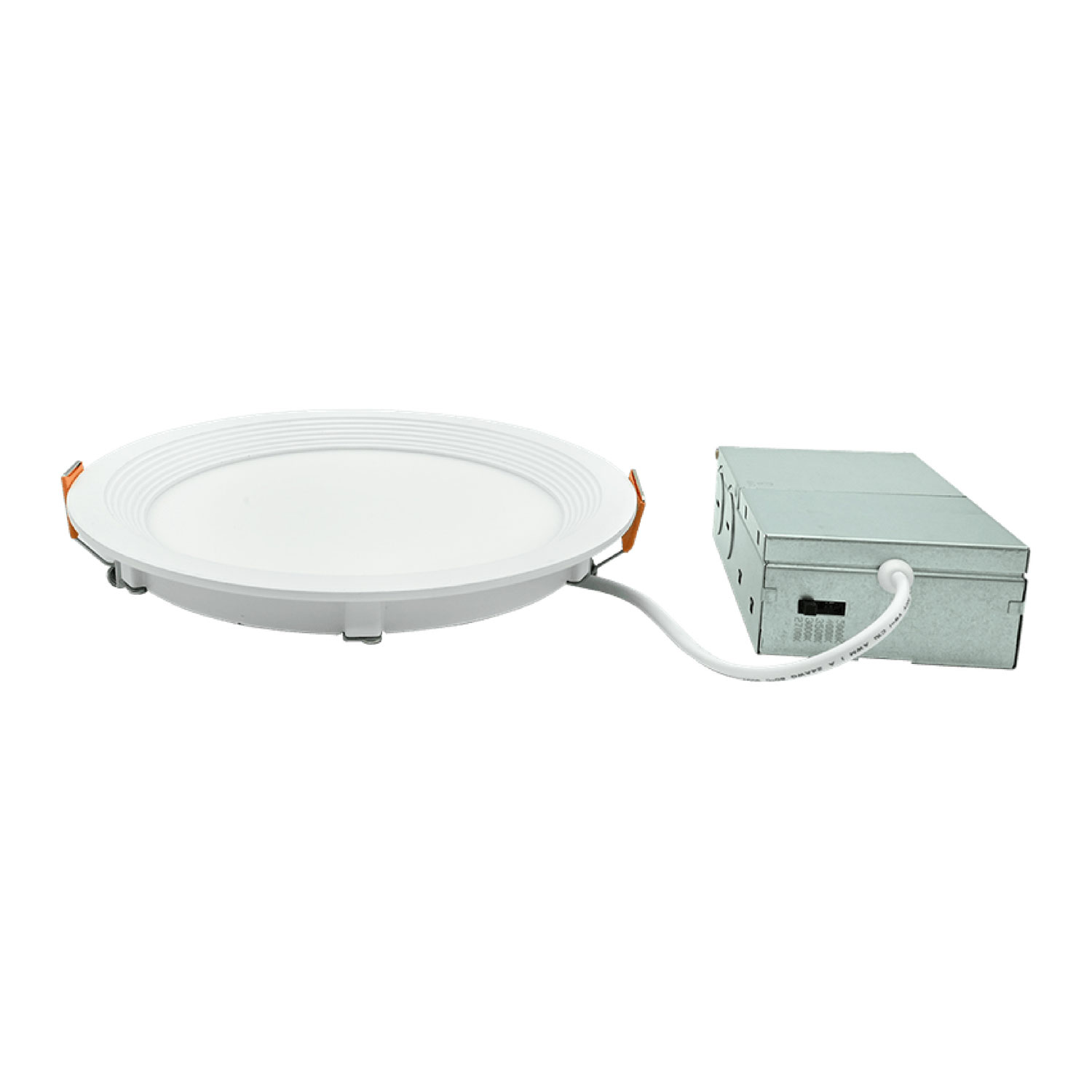

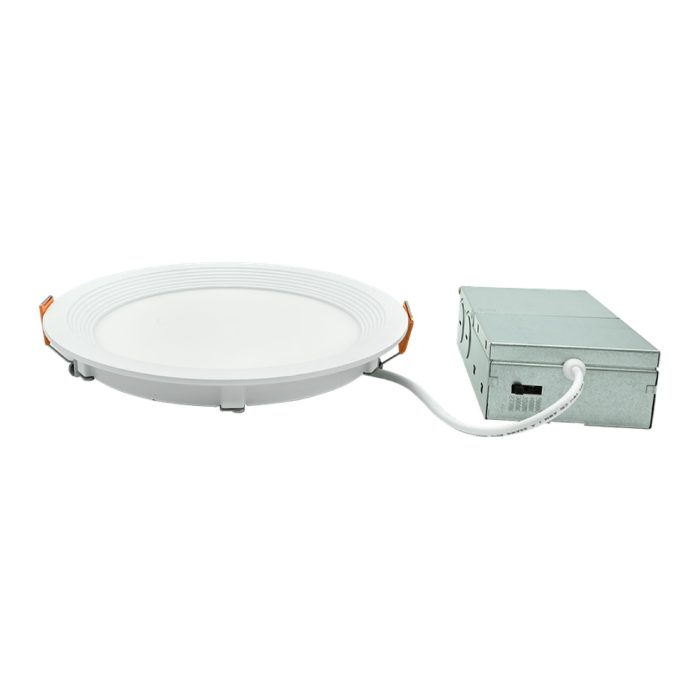

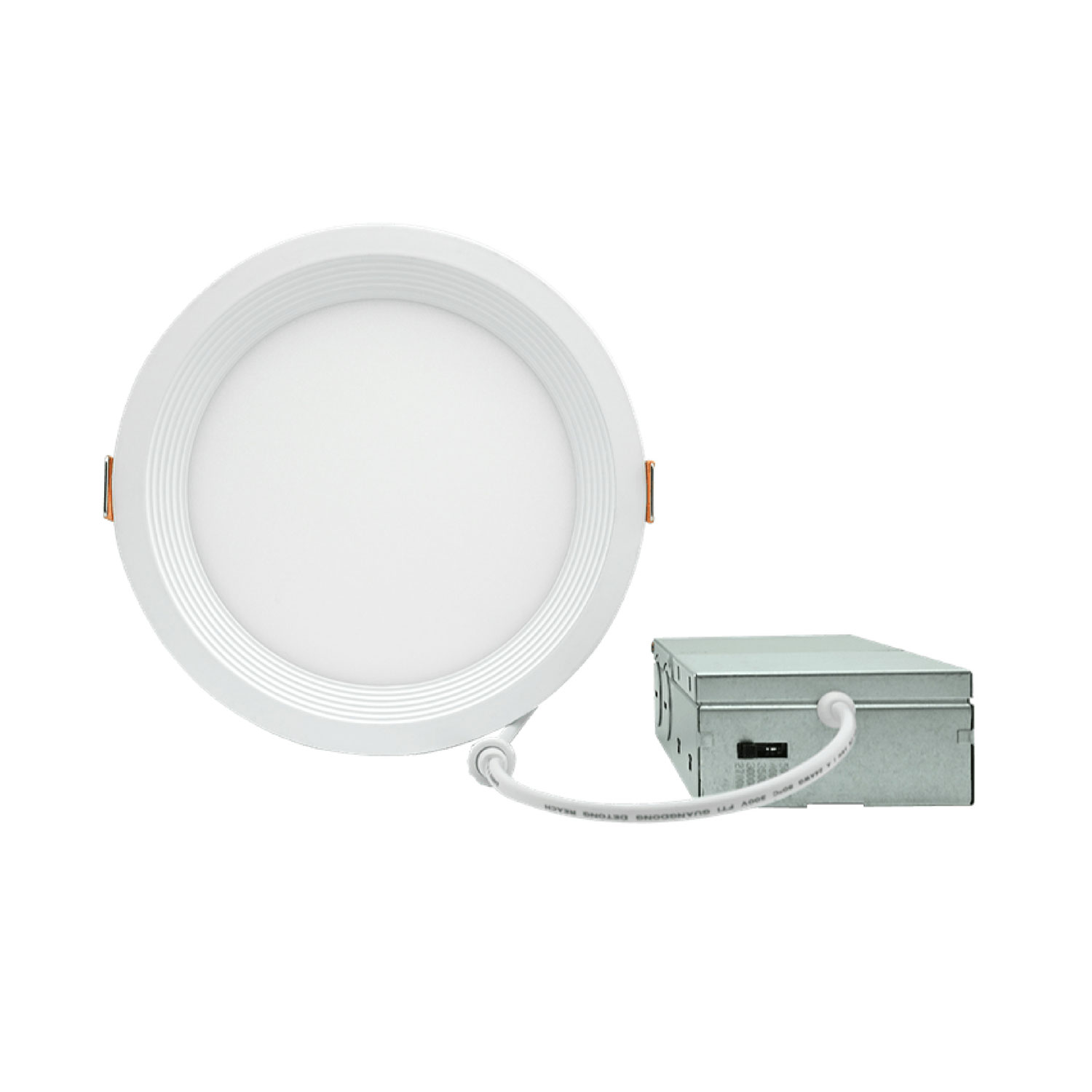

6″ 12W LED Round Slim Ultra-thin Downlight, 5CCT Selectable (2700K–5000K), 960-1030 Lumens, 0-10V Dimmable, ETL Listed
Features;
-
Slim Profile: Ultra-slim recessed downlight design with only 1.22″ thickness, ideal for modern installations without existing housings or junction boxes.
-
Selectable Color: 5CCT adjustable light (2700K, 3000K, 3500K, 4000K, 5000K) lets users customize ambiance from warm to daylight white in any space.
-
High Quality Light: Provides 960-1030 lumens at CRI 90 with 100° beam angle, edge-lit technology, and baffle trim for glare-free, even illumination.
-
Wet Location Rated: Safe for bathrooms, laundry rooms, porches, and garages, with durable PS+Aluminum construction and reliable operation in -20°C to +45°C environments.
-
Certified Performance: ETL listed, energy efficient driver, 0-10V dimmable with smooth brightness control, backed by a 5-year limited warranty for long-term reliability.
Download Specification Sheet Here
Description
| Model | SZ-DL12W6-SP-R-CCT-277V | Size | 6 Inch |
|---|---|---|---|
| Wattage | 12W | Lumens | 960-1030 LM |
| CCT Selectable | 2700K / 3000K / 3500K / 4000K / 5000K | CRI | 90 |
| Beam Angle | 100° | Input Voltage | 120–277V, 60Hz |
| Power Factor | >0.9 | Dimming | 0-10V Continuous |
| Housing Material | PS + Aluminum | Housing Color | White |
| Lifespan | ≥50,000 Hours | Operating Temp | -4°F to 113°F (-20°C to +45°C) |
| Rating | Wet Location Rated | Certifications | ETL |
| Warranty | 5 Years Limited | Trim Style | Baffle Trim |
| Cutout Size | Φ4.92” (125±0.5mm) | Fixture Depth | 1.22” (31±0.5mm) |
12W
Wattage
960-1030 LM
Lumens
50,000
Hours Life
2700K/3000K/3500K/4000K/5000K
CCT
Color Temperature guide
2700k - 5000k Kelvins
Supper Tech LED CCT (Correlated Color Temperature) represents lighting appearance in spaces.
The warmer colour is beneficial for the residential spaces. And The cooler color is ideal for workspaces for a more focused environment.
True colors lighting
Color Rendering Index
Super Tech LED Offers a high CRI (90+)source to measure the ability to reproduce the natural color of light more vibrantly, and realistically as compared to lower CRI, which enhances environment visibility.
Full Range Dimming
0-10 Dimmable
Super Tech LED makes it easier to adjust the lighting intensity and brightness. Dimming up and down changes the visual appearance to your preference.
Touch of modernity
Sleek Modern Design
Super Tech LED light enhanced lighting effects that illuminate and touches modernity as well as having an elegant round design with plastic hours that is long-lasting.
