Illuminate Your Space: The Power of LED Wall Packs

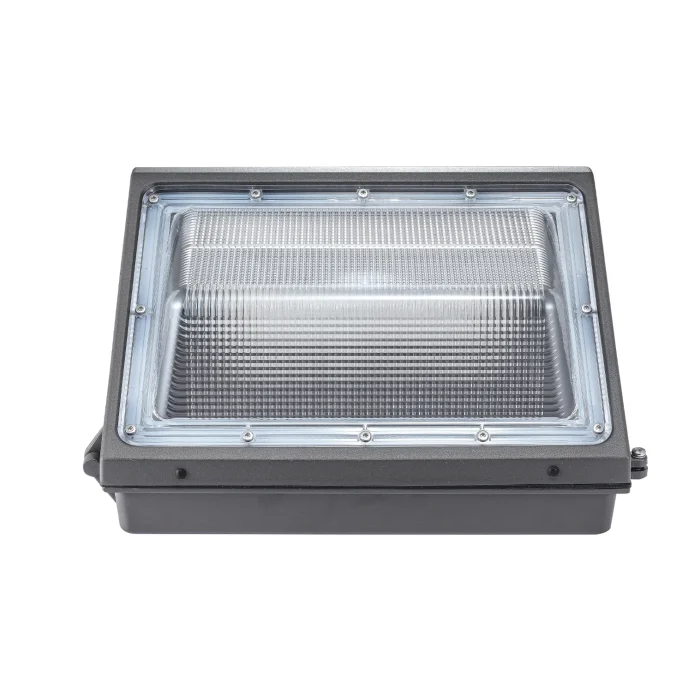

60/80/100/120W LED Semi Cutoff Wall Pack Light CCT(3000K/4000K/5000K), 120-277V/AC | WP-60/80/100/120W-XXK-U/P

Features;

Power Tunable: Adjustable wattage options 60W, 80W, 100W, and 120W allow flexible energy usage and performance optimization based on different outdoor lighting requirements and installation environments
CCT Selectable: Color temperature selectable between 3000K, 4000K, and 5000K, enabling users to customize lighting ambiance and visibility for commercial, industrial, or security lighting applications
High Efficiency: Delivers up to 130 lumens per watt with high lumen output, ensuring bright illumination while maintaining energy savings and reducing overall operational and maintenance costs
Durable Construction: Built with die-cast aluminum housing and high-transmittance lens, providing excellent heat dissipation, durability, and long-lasting performance in demanding outdoor conditions
Smart Features: Equipped with built-in photocell and dip switch technology for easy power and CCT adjustment, ensuring convenient installation, control, and adaptability across multiple lighting setups

Download Specification Sheet Here

Product Type	LED Wall Pack	Model	LS-WP60/80/100/120W-XXK
Wattage	60W / 80W / 100W / 120W	Power Type	Power Tunable
Color Temperature	3000K / 4000K / 5000K	CCT Type	CCT Selectable
Input Voltage	120-277VAC	Efficiency	Up to 130 lm/W
Lumen Output	Up to 15,600 LM	CRI	>70
Beam Angle	~120°	Dimming	0-10V Dimmable
Material	Die-cast Aluminum	Lens Type	High Transmittance Plastic
Installation	Wall Mount	Mounting	Quick Mount Clips
Certifications	ETL, cETL, DLC	Application	Outdoor Commercial & Industrial

SPECIFICATION SHEET

PHOTOMETRIC SHEET

Wattage

Lumens

50,000

Hours Life

CCT

Color Temperature guide

2700k - 5000k Kelvins

Supper Tech LED CCT (Correlated Color Temperature) represents lighting appearance in spaces.
The warmer colour is beneficial for the residential spaces. And The cooler color is ideal for workspaces for a more focused environment.

True colors lighting

Color Rendering Index

Super Tech LED Offers a high CRI (90+)source to measure the ability to reproduce the natural color of light more vibrantly, and realistically as compared to lower CRI, which enhances environment visibility.

Full Range Dimming

0-10 Dimmable

Super Tech LED makes it easier to adjust the lighting intensity and brightness. Dimming up and down changes the visual appearance to your preference.

Touch of modernity

Sleek Modern Design

Super Tech LED light enhanced lighting effects that illuminate and touches modernity as well as having an elegant round design with plastic hours that is long-lasting.
