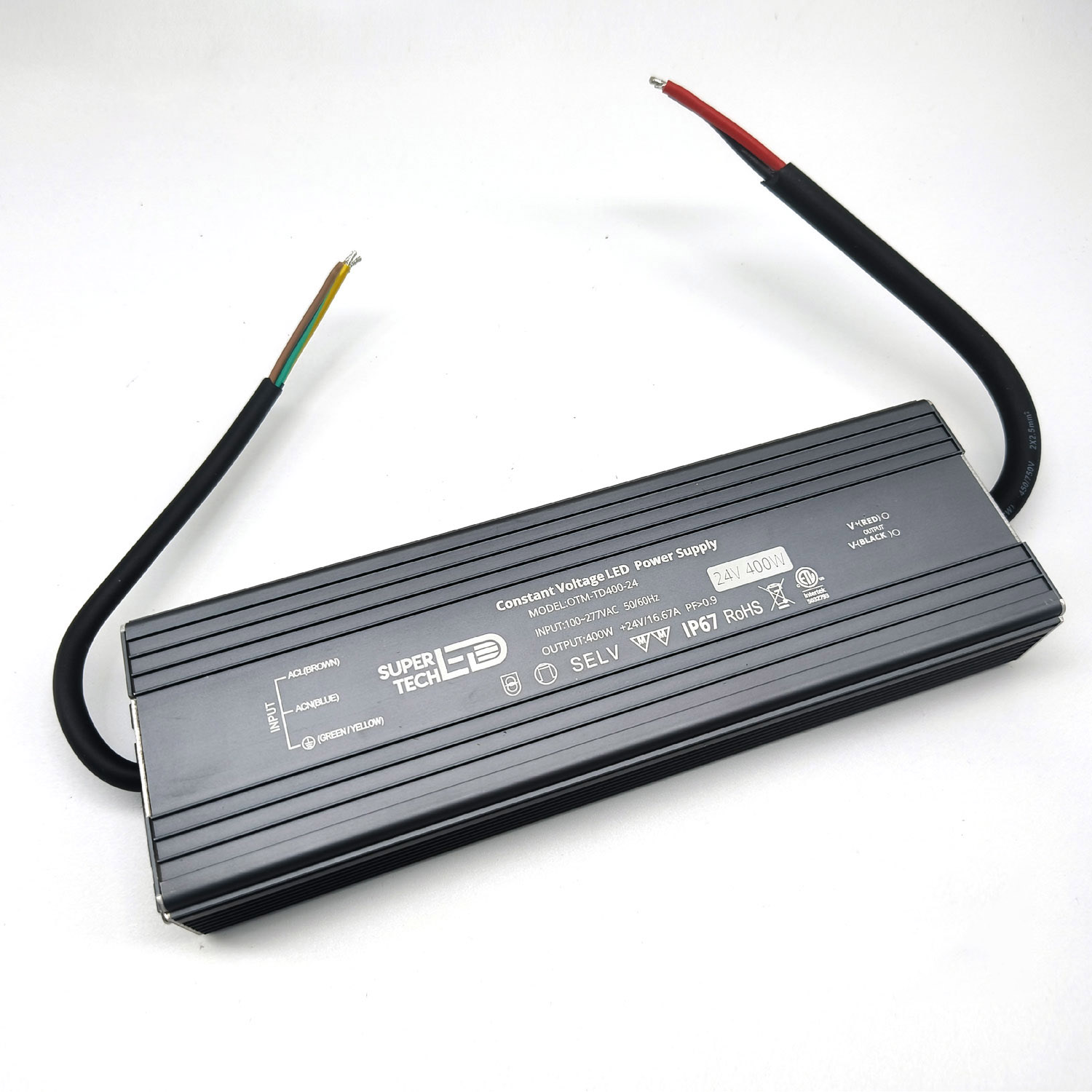

400W LED Outdoor Power Supply | 24V Ultra-Thin, Waterproof, IP67, ETL Certified
Features;
-
Maximum Output: Powerful 400W ultra-thin LED driver designed for large-scale lighting systems, delivering dependable power with efficiency up to 92%.
-
Flexible Output Options: Supports 24V at 16.66A, ensuring versatility for various LED load requirements.
-
Global Input Range: Operates on 100–277VAC with power factor >0.9, compatible with worldwide electrical systems.
-
Comprehensive Protection: Features protection against short circuit, overload, over current, and thermal overload with automatic recovery.
-
Certified Performance: ETL listed, CE, RoHS, and SAA certified with 5-year warranty for proven reliability in demanding applications.
Download Specification Sheet Here
Description
| Model | OTM-TD400-24 | Power | 400W |
|---|---|---|---|
| Input Voltage | 100-277VAC | Output Voltage | 24V |
| Output Current | 16.66A | Power Factor | >0.9 |
| Efficiency | Up to 92% | Flicker-Free | Yes |
| IP Grade | IP67 | Cooling | Free Air Convection |
| Protection | Short Circuit, Overload, Over Current, Over Temp | Warranty | 5 Years |
| Product Size | 250×75×35 mm | Certifications | ETL, CE, RoHS, SAA |
400W
Wattage
Lumens
50,000
Hours Life
CCT
Color Temperature guide
2700k - 5000k Kelvins
Supper Tech LED CCT (Correlated Color Temperature) represents lighting appearance in spaces.
The warmer colour is beneficial for the residential spaces. And The cooler color is ideal for workspaces for a more focused environment.
True colors lighting
Color Rendering Index
Super Tech LED Offers a high CRI (90+)source to measure the ability to reproduce the natural color of light more vibrantly, and realistically as compared to lower CRI, which enhances environment visibility.
Full Range Dimming
0-10 Dimmable
Super Tech LED makes it easier to adjust the lighting intensity and brightness. Dimming up and down changes the visual appearance to your preference.
Touch of modernity
Sleek Modern Design
Super Tech LED light enhanced lighting effects that illuminate and touches modernity as well as having an elegant round design with plastic hours that is long-lasting.
