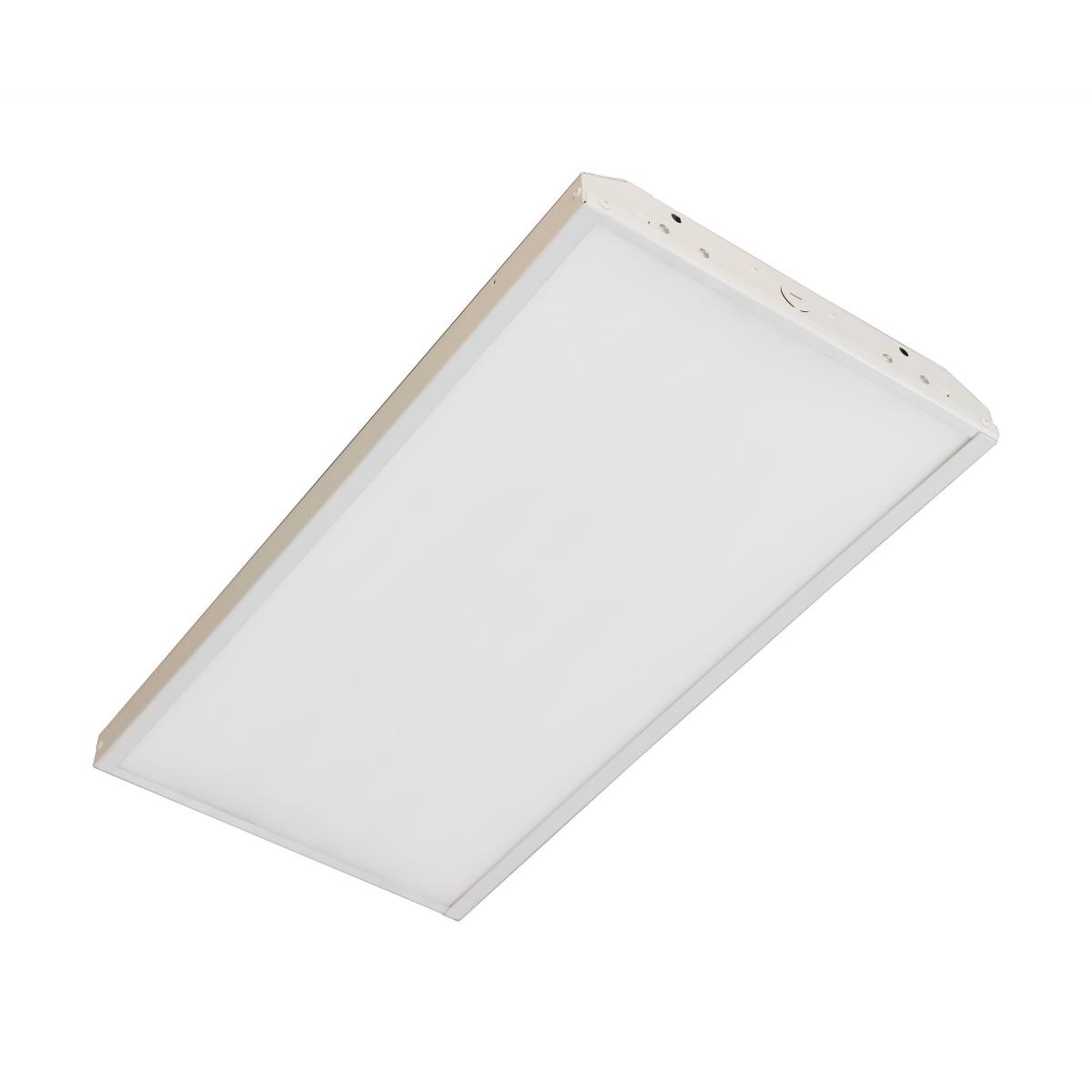

Energy-Efficient 225W LED High Bay Light for Warehouses

225W 4FT LED Linear High Bay Light – 30,375 Lumens – 5000K Daylight – 0-10V Dimmable | TS-HB5-225W-H-50K

Features;

Powerful Performance: Delivers 30,375 lumens from 225W, providing bright daylight illumination at 5000K, ideal for warehouses, retail, and industrial facilities.
Energy Efficient: Achieves 135 lm/W efficacy with a 0.90 power factor and low 20% THD, ensuring reduced energy costs and eco-friendly long-lasting operation.
Flexible Dimming: Equipped with 0-10V dimmable driver, allowing easy adjustment of light output to suit various environments, schedules, and energy-saving needs.
Durable Build: Constructed from aluminum with a frosted polycarbonate lens and IP20 rating, ensuring reliability, corrosion resistance, and consistent light distribution.
Certified & Reliable: UL, DLC Premium, and RoHS certified, backed by a 5-year warranty for guaranteed performance, safety compliance, and rebate eligibility.

Download Specification Sheet Here

Wattage	225W	Voltage	120-277V
Frequency	50/60 Hz	Power Factor	>0.9
THD	≤20%	Operating Temperature	-40°F to 113°F (-40°C to 45°C)
Lumens	30,375 lm	Efficacy	135 lm/W
CCT	5000K	Dimmable	0-10V
CRI	Ra≥80	Life Span	50,000 hrs
Size	4-FT	Color	White
Lens Type	Polycarbonate	Diffuser	Micro-Filter
Rating	Damp Rated	Warranty	5 Year

SPECIFICATION SHEET

PHOTOMETRIC SHEET

225W

Wattage

29250LM

Lumens

50,000

Hours Life

5000K

CCT

Color Temperature guide

2700k - 5000k Kelvins

Supper Tech LED CCT (Correlated Color Temperature) represents lighting appearance in spaces.
The warmer colour is beneficial for the residential spaces. And The cooler color is ideal for workspaces for a more focused environment.

True colors lighting

Color Rendering Index

Super Tech LED Offers a high CRI (90+)source to measure the ability to reproduce the natural color of light more vibrantly, and realistically as compared to lower CRI, which enhances environment visibility.

Full Range Dimming

0-10 Dimmable

Super Tech LED makes it easier to adjust the lighting intensity and brightness. Dimming up and down changes the visual appearance to your preference.

Touch of modernity

Sleek Modern Design

Super Tech LED light enhanced lighting effects that illuminate and touches modernity as well as having an elegant round design with plastic hours that is long-lasting.
