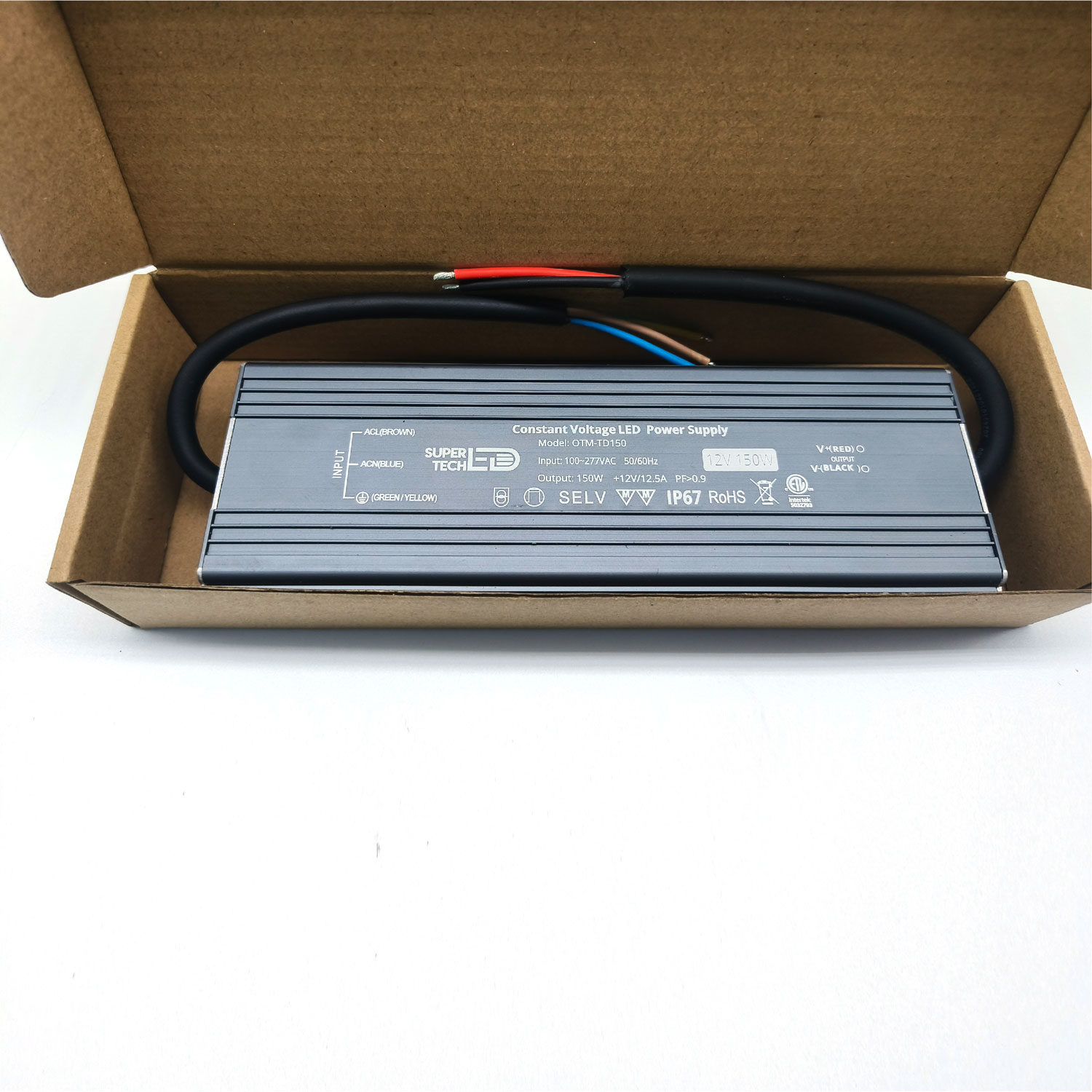

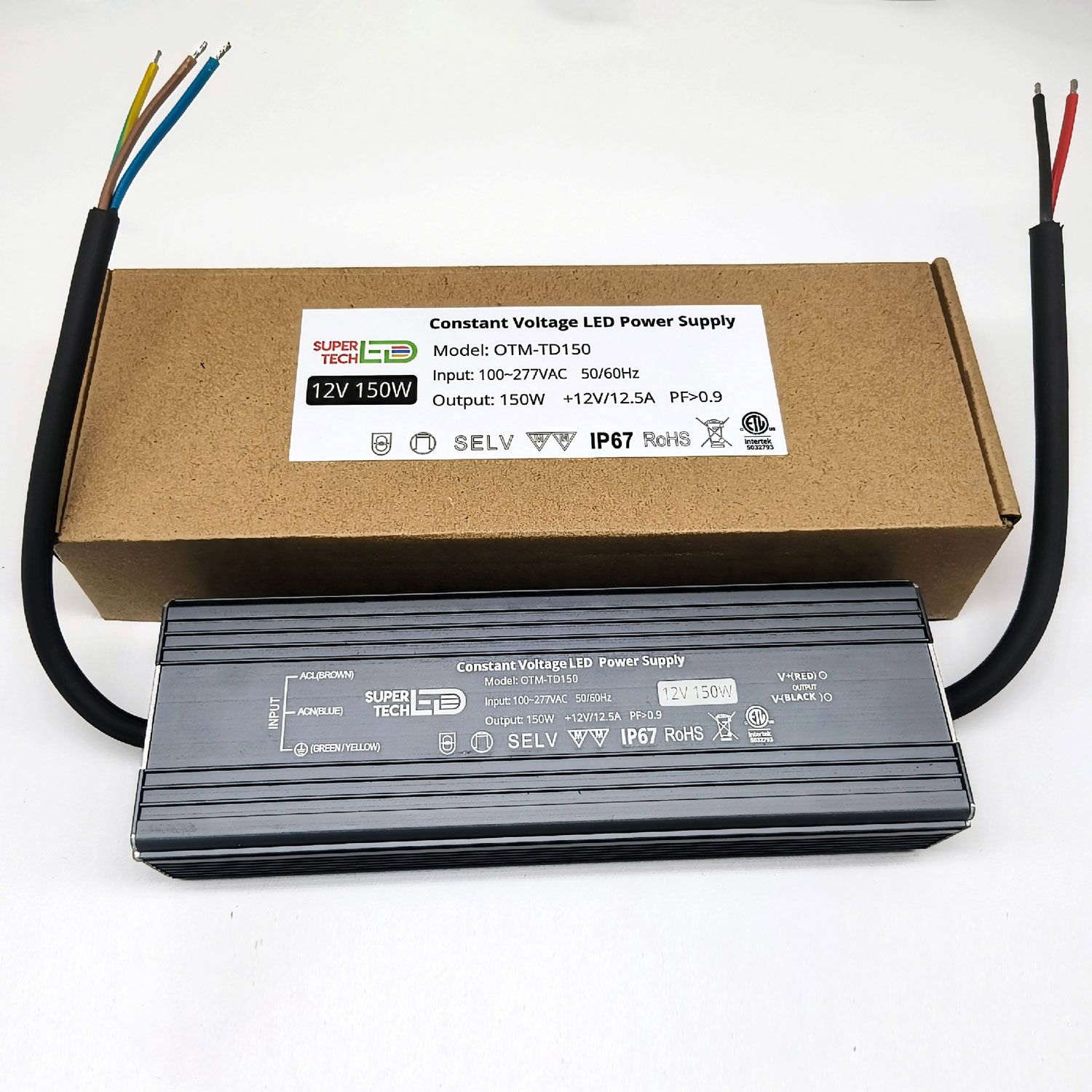

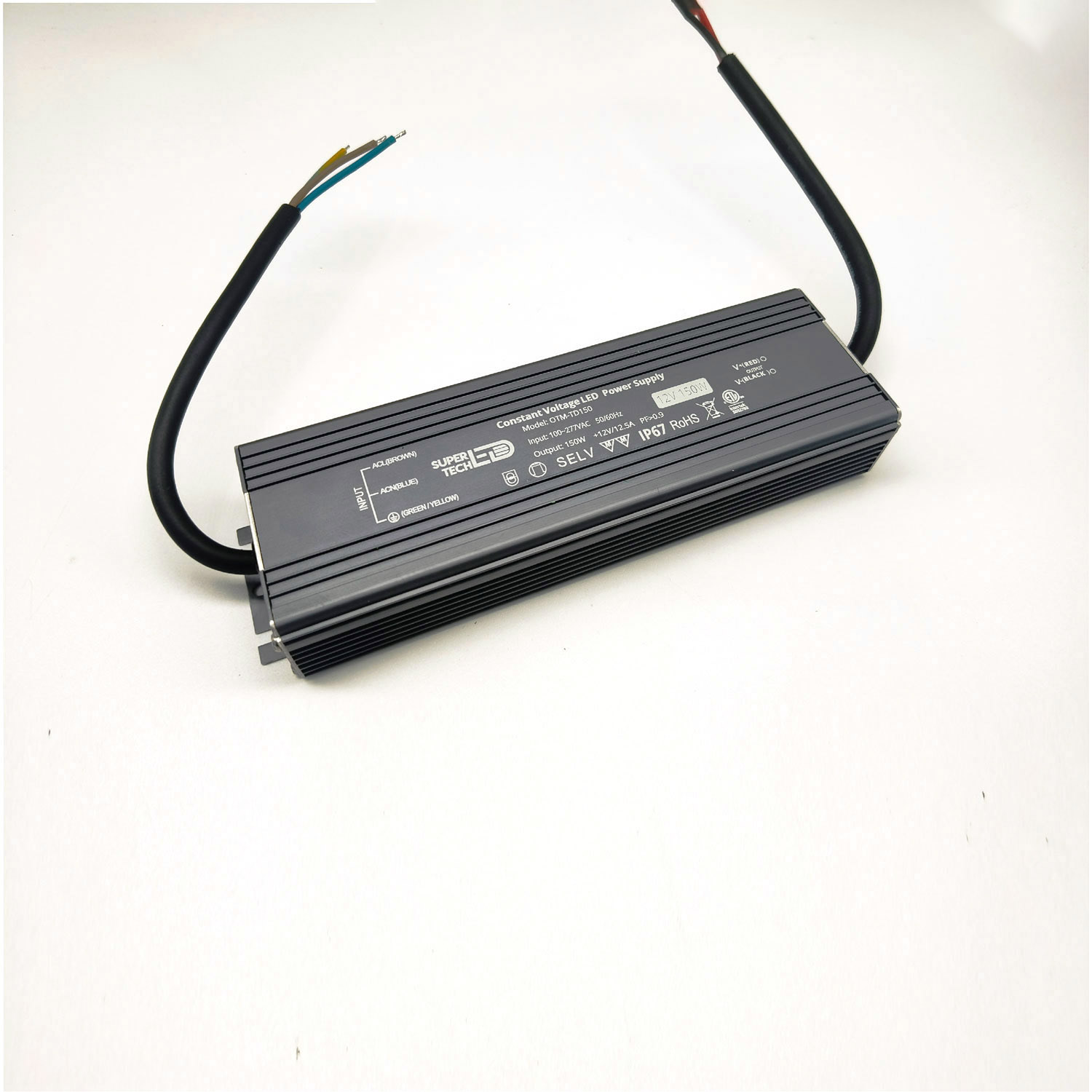

150W LED Outdoor Power Supply | 12V/24V Ultra-Thin, Waterproof, IP67, ETL Certified
Features
-
High Performance: Ultra-thin waterproof LED driver designed for continuous duty applications, delivering high efficiency up to 92% with power factor greater than 0.9.
-
Wide Compatibility: Input range 100–277VAC supports global usage, making it ideal for commercial, industrial, and residential LED systems.
-
Flexible Output: Offers 12V at 12.5A or 24V at 6.25A, enabling versatility for different LED strip, module, or luminaire configurations.
-
Built-in Safety: Includes multiple protections—short circuit, overload, over current, and over temperature—ensuring safe, reliable operation under demanding conditions.
-
Certified Assurance: ETL listed, CE, RoHS, and SAA certified with a robust 5-year warranty for peace of mind.
Download Specification Sheet Here
Description
| Model | OTM-TD150-12 / OTM-TD150-24 | Power | 150W |
|---|---|---|---|
| Input Voltage | 100-277VAC | Output Voltage | 12V / 24V |
| Output Current | 12.5A / 6.25A | Power Factor | >0.9 |
| Efficiency | Up to 92% | Flicker-Free | Yes |
| IP Grade | IP67 | Cooling | Free Air Convection |
| Protection | Short Circuit, Overload, Over Current, Over Temp | Warranty | 5 Years |
| Product Size | 210×62×35 mm | Certifications | ETL, CE, RoHS, SAA |
150W
Wattage
Lumens
50,000
Hours Life
CCT
Color Temperature guide
2700k - 5000k Kelvins
Supper Tech LED CCT (Correlated Color Temperature) represents lighting appearance in spaces.
The warmer colour is beneficial for the residential spaces. And The cooler color is ideal for workspaces for a more focused environment.
True colors lighting
Color Rendering Index
Super Tech LED Offers a high CRI (90+)source to measure the ability to reproduce the natural color of light more vibrantly, and realistically as compared to lower CRI, which enhances environment visibility.
Full Range Dimming
0-10 Dimmable
Super Tech LED makes it easier to adjust the lighting intensity and brightness. Dimming up and down changes the visual appearance to your preference.
Touch of modernity
Sleek Modern Design
Super Tech LED light enhanced lighting effects that illuminate and touches modernity as well as having an elegant round design with plastic hours that is long-lasting.
